In the daily operation and maintenance of industrial machinery, bearings serve as the critical heart of rotating equipment. Their operational health directly dictates the stability and productivity of the entire production line. For reliability engineers, friction is not just the primary catalyst for bearing failure—it is the ultimate "signal light" reflecting internal health. Every abnormal friction event generates a distinct vibrational signature. Mastering the physics behind these vibration signals gives engineers the power to accurately diagnose and pinpoint machinery faults before they lead to catastrophic downtime.

1. The Acoustic and Spectral Anatomy of Poor Lubrication

When a bearing suffers from inadequate lubrication or excessive clearance, rolling elements begin to slide rather than roll smoothly along the raceways. This sliding friction typically manifests acoustically as a low, dull humming sound.

If contaminants like sand, grit, or metal debris infiltrate the lubricant, or if the raceway surface becomes rough due to wear, the friction profile shifts dramatically. It transforms into a high-pitched, sharp screech, accompanied by a rapid spike in bearing temperature.

In vibration analysis, poor lubrication exhibits highly distinct spectral and waveform fingerprints:

• The Frequency Spectrum: The mid-frequency zone of the power spectrum (typically between 800 Hz and 1600 Hz) will display a cluster of "mountain-like" peaks spaced approximately 80 Hz to 130 Hz apart. This cluster is the physical result of internal impact loads exciting the structural natural frequencies of the bearing housing.

• The Time-Domain Waveform: Dry friction or excessive looseness often distorts the waveform, causing an asymmetrical "clipping" effect where the peaks of the sine wave appear flattened. This provides a direct, visual confirmation of a lubrication or clearance anomaly.

2. From Localized Defects to Secondary Friction

If left unchecked, continuous abnormal friction inevitably triggers subsurface fatigue, leading to micro-cracks or localized spalling on the bearing components. Once a localized defect forms, every pass of a rolling element over the damaged area generates a periodic impact pulse.

The frequency of these pulses—known as the Bearing Characteristic Frequencies (BCFs)—corresponds precisely to the bearing’s internal geometry and rotational speed, serving as an absolute blueprint for locating the exact faulty component (inner ring, outer ring, cage, or rolling element).

The Acceleration Cascade: The sharp edges of a fresh spall generate severe secondary friction during subsequent revolutions. This localized friction induces extreme micro-temperatures, accelerating material fatigue and causing minor pitting to rapidly escalate into large-scale, catastrophic failure.

3. Early Detection via Advanced Signal Processing

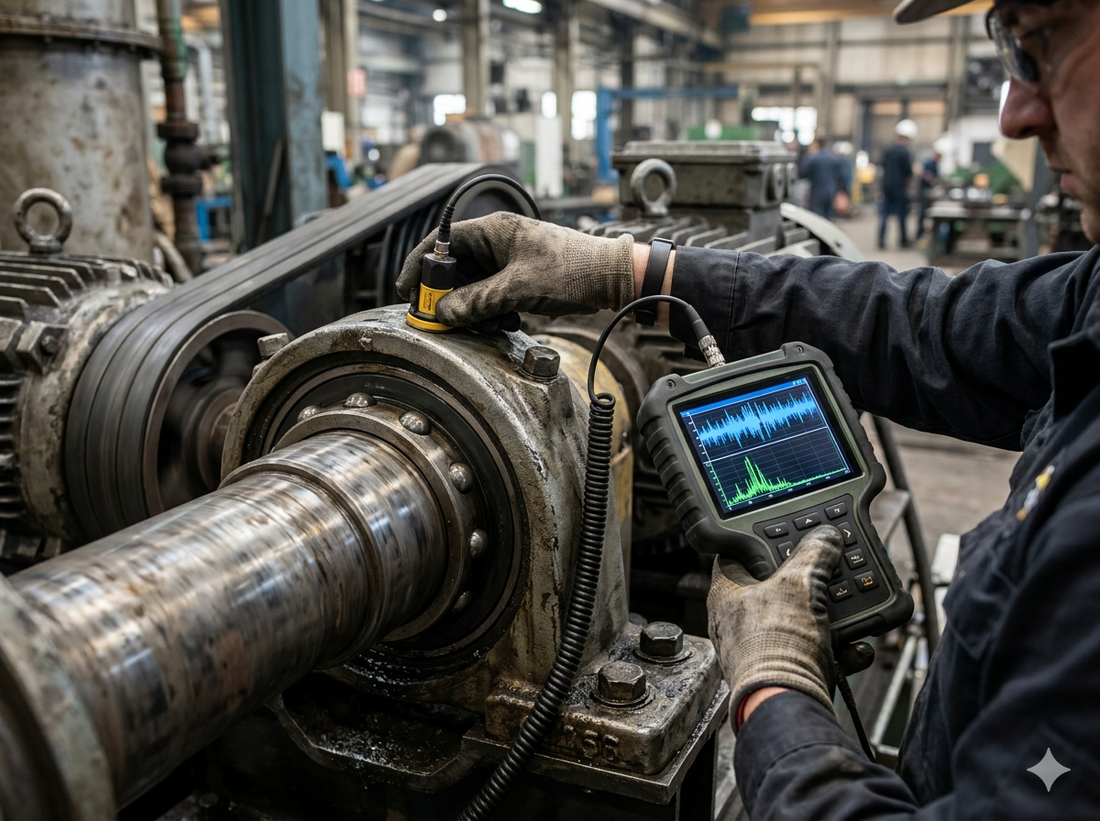

To capture these faint, early-stage friction impacts amidst heavy industrial background noise, advanced signal processing is vital. Technicians utilize Resonance Demodulation (Envelope Analysis) to filter out low-frequency structural vibrations. This technique isolates and amplifies the high-frequency impact energy generated by early-stage friction, providing a true early warning system long before the bearing reaches a critical failure state.

Partner with the Bearing Experts

As a leading bearing manufacturer and premier distributor of world-class bearing brands, we understand that premium machinery demands premium components—and expert insight. We don't just supply precision-engineered bearings designed to minimize friction and maximize service life; we also provide the technical expertise to help you monitor, diagnose, and optimize your equipment.

Protect your production line from unplanned downtime. Contact our engineering team today to find the perfect high-reliability bearing solutions and monitoring support for your specific industrial applications.
