PWKR47-2RS-A Stud type track rollers bearings Dimensions Bolt/stud length effectively B2 40.50 mm Width of flats W 10 mm Thread M20X1,5 Stop diameter of thrust washer d2 27 mm Protrusion outer ring to thrust washer C1 0.80 mm Distance to lubrication hole Ca 9 mm Witdh of thrust washer B1...

NATR12-X-PP Yoke Rollers bearings

PWTR4090-2RS-A Track rollers bearings Dimensions Minimum chamfer dimension rmin 0.60 mm Width, outer ring C 30 mm Stop diameter of thrust washer d2 50.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 66,000 N Speed on permanent grease lubrication nD G 1,500 1/min Basic...

KR16-PP-SK-A Stud type track rollers bearings

LR202-2RSR>A Track rollers bearings Dimensions Diameter of thrust washer d2 21 mm Radius of outer ring outside profile R 500 mm Minimum chamfer dimension rmin 0.60 mm Main Dimensions & Performance Data Outside diameter D 40 mm Height T 11 mm Basic static load rating, radial C0r 3,450 N Speed...

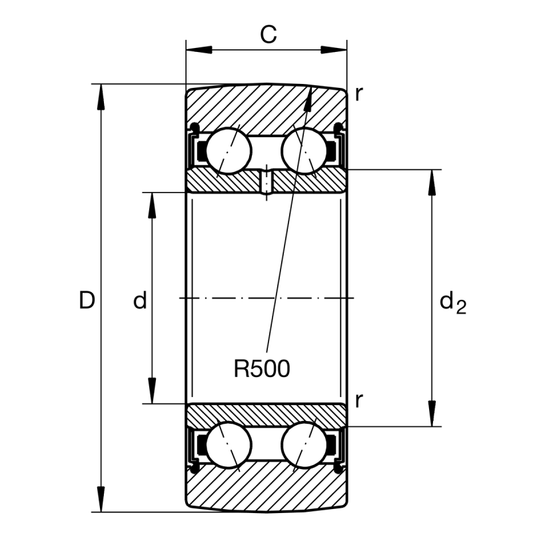

LR50/7-2RSR-HLC Track rollers bearings Dimensions Radius of outer ring outside profile R 500 mm Diameter of thrust washer d2 10.50 mm Minimum chamfer dimension rmin 0.30 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 1,700 N Fatigue load limit, radial Cur 83 N Basic...

NATR15-X-A Yoke Rollers bearings

NATV8-X-PP Yoke Rollers bearings

PWTR1747-2RS-A-RR Track rollers bearings Dimensions Minimum chamfer dimension rmin 0.50 mm Width, outer ring C 20 mm Stop diameter of thrust washer d2 22 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 18,400 N Speed on permanent grease lubrication nD G 5,000 1/min Basic...

NATR5-X-PP Yoke Rollers bearings

LR200-X-2RSR>A Support Roller bearings Dimensions Diameter of thrust washer d2 16.60 mm Radius of outer ring outside profile R 500 mm Minimum chamfer dimension rmin 0.60 mm Main Dimensions & Performance Data Outside diameter D 32 mm Height T 9 mm Basic static load rating, radial C0r 2,380 N Speed...

PWTR2562-2RS-A Track rollers bearings Dimensions Minimum chamfer dimension rmin 0.50 mm Width, outer ring C 24 mm Stop diameter of thrust washer d2 31 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 42,500 N Speed on permanent grease lubrication nD G 3,800 1/min Basic...
