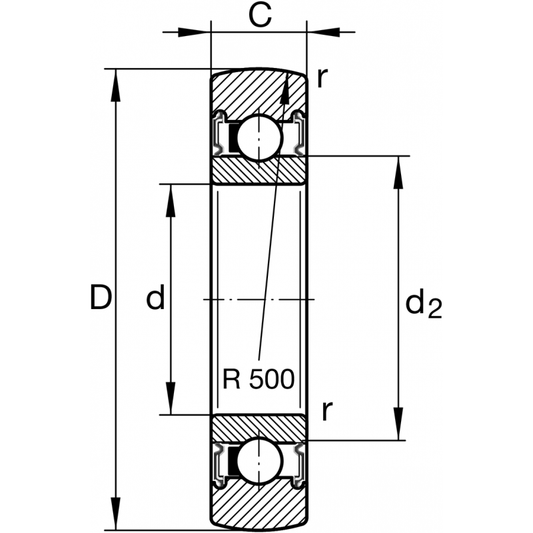

LR6000-2RSR Support Roller bearings Dimensions Diameter of thrust washer d2 14.60 mm Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 16,000 1/min Basic static load rating, radial C0r 2,550 N Height...
LR606-2RSR-HLC Support Roller bearings Dimensions Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Diameter of thrust washer d2 8.70 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 22,000 1/min Basic static load rating, radial C0r 810 N Height...

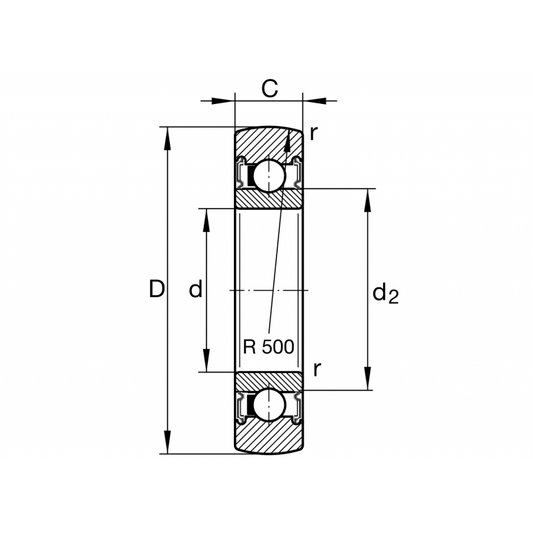

LR605-2RSR-HLC Support Roller bearings Dimensions Minimum chamfer dimension rmin 0.20 mm Radius of outer ring outside profile R 500 mm Diameter of thrust washer d2 7.50 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 23,000 1/min Basic static load rating, radial C0r 510 N Height...
