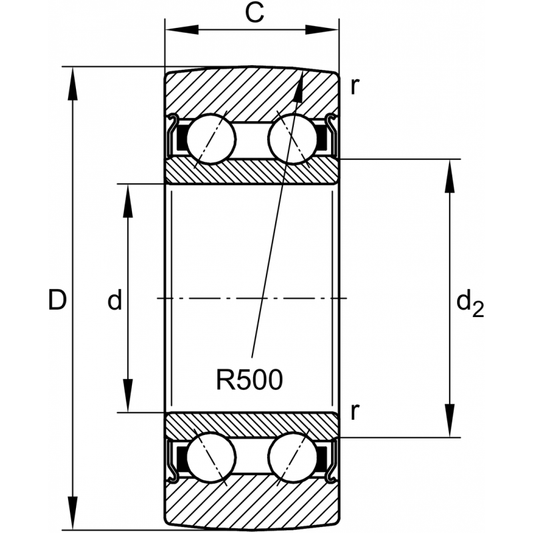

LR5201-2Z-TVH-XL Support Roller bearings Dimensions Diameter of thrust washer d2 19.10 mm Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 4,800 N Fatigue load limit, radial Cur 315 N Basic...

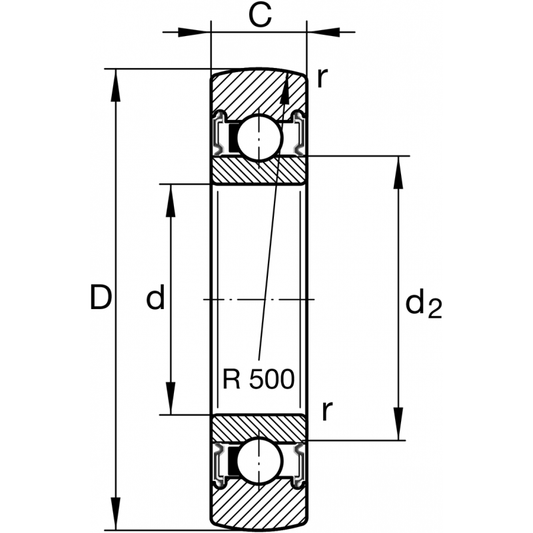

LR206-X-2RS Support Roller bearings Dimensions Diameter of thrust washer d2 37.40 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 5,500 1/min Basic static load rating, radial C0r 9,900 N Height...
