NATV25PP Track rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 43,500 N Speed on permanent grease lubrication nD G 1,000 1/min Basic static load rating, radial C0r 44,500 N Width, inner ring Bi 25 mm Bore diameter d 25 mm Permissible static load,...

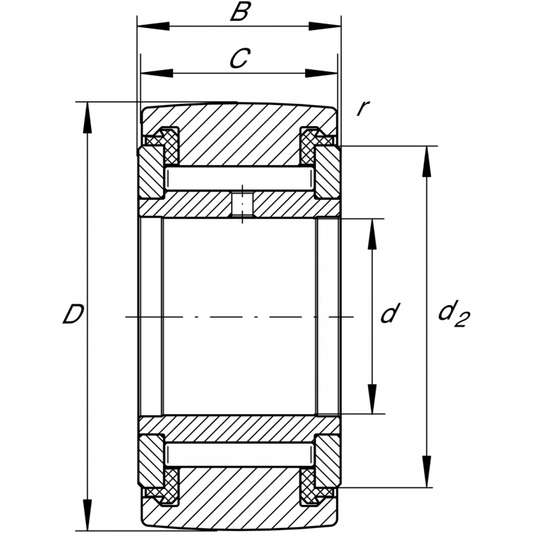

NATV12-PP Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 14,900 N Speed on permanent grease lubrication nD G 1,800 1/min Basic static load rating, radial C0r 15,900 N Width, inner ring Bi 15 mm Bore diameter d 12 mm Permissible static load,...
NATR15PP Track rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 14,500 N Speed on permanent grease lubrication nD G 3,600 1/min Basic static load rating, radial C0r 14,500 N Width, inner ring Bi 19 mm Bore diameter d 15 mm Permissible static load,...
ZL5201-DRS Track rollers bearings Dimensions Maximum witdh of thrust washer B1 19.50 mm Thread length (inner) lg 14 mm Minimum chamfer dimension rmin 0.60 mm Protrusion outer ring to thrust washer C1 2.60 mm Length total B4 31 mm Radius of outer ring outside profile R 500 mm Thread inside...
