RSTO50 Yoke Rollers bearings Dimensions Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Raceway diameter outer ring E 68 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 650 1/min Basic static load rating, radial C0r 47,000 N Width,...
Yoke Type Track Roller RSTO50 60x90x19.8 mm it consists of a thick-walled outer ring with spherical outside surface profile and a needle roller and cage assembly, it is not sealed but filled with grease supports high radial and axial loads from slight misalignments and skewed running without inner ring, can...
RSTO6-TV Support Roller bearings Dimensions Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Raceway diameter outer ring E 13 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 10,000 1/min Basic static load rating, radial C0r 4,600 N Width,...

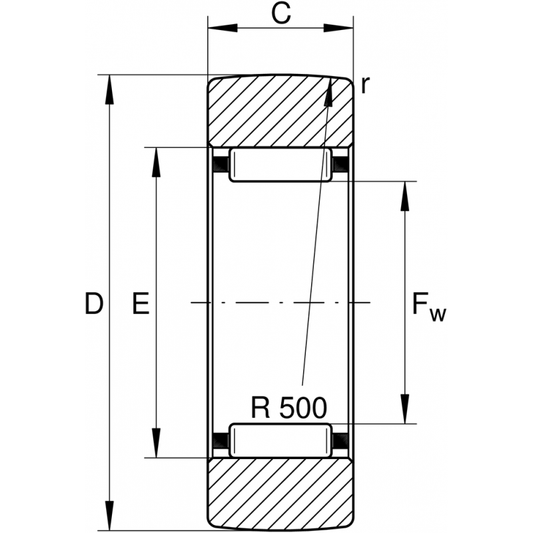

RSTO8-TV Support Roller bearings Dimensions Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Raceway diameter outer ring E 15 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 8,000 1/min Basic static load rating, radial C0r 5,600 N Width,...
