High-Performance Axial Ball Bearings: Precision in Motion

Our Axial Ball Bearings (also known as Thrust Deep Groove Ball Bearings) are engineered to handle high-magnitude thrust loads with exceptional precision. Designed for applications where axial forces dominate, these bearings ensure smooth rotation and long-term mechanical reliability.

Key Features & Benefits

  • Superior Axial Load Capacity: Specifically optimized to support heavy loads parallel to the shaft, maintaining stability under high-pressure conditions.

  • High-Grade Chrome Steel (GCr15): Manufactured using premium materials to ensure high fatigue strength and wear resistance.

  • Low Friction & Quiet Operation: Precision-ground raceways minimize energy loss and noise, contributing to a longer service life for the entire machinery.

  • Interchangeable Components: Designed with separable washers (shaft and housing washers) and ball-and-cage assemblies for easy installation and maintenance.

Technical Specifications

Feature Specification
Bearing Type Single-direction / Double-direction
Material High-Carbon Chromium Steel / Stainless Steel
Tolerance Class P0, P6, P5 (ISO Standard)
Cage Options Pressed Steel, Machined Brass, or Synthetic Resin

439 products

  • SKF 51130 M Ball Thrust Bearings

    SKF 51130 M Ball Thrust Bearings

    SKF 51130 M Ball Thrust Bearings

    SKF 51130 M Ball Thrust Bearings Description bore diameter: 150 mm   static load capacity: 440 kN outside diameter: 190 mm   dynamic load capacity: 111 kN overall width: 31 mm   maximum rpm: 2400 RPM thrust bearing type: Single-Direction   cage material: Brass outside diameter design: Straight   fillet...
    $174.64
    $174.64
  • SKF 51116 Ball Thrust Bearings

    SKF 51116 Ball Thrust Bearings

    SKF 51116 Ball Thrust Bearings

    SKF 51116 Ball Thrust Bearings Description bore diameter: 80 mm   static load capacity: 140 kN outside diameter: 105 mm   dynamic load capacity: 44.9 kN overall width: 19 mm   maximum rpm: 4300 RPM thrust bearing type: Single-Direction   cage material: Steel outside diameter design: Straight   fillet radius:...
    $49.68
    $49.68
  • SKF 51206 Ball Thrust Bearings

    SKF 51206 Ball Thrust Bearings

    SKF 51206 Ball Thrust Bearings

    SKF 51206 Ball Thrust Bearings Description bore diameter: 30 mm   static load capacity: 51 kN outside diameter: 52 mm   dynamic load capacity: 25.1 kN overall width: 16 mm   maximum rpm: 6700 RPM thrust bearing type: Single-Direction   cage material: Steel outside diameter design: Straight   fillet radius:...
    $13.13
    $13.13
  • SKF 51106 Ball Thrust Bearings

    SKF 51106 Ball Thrust Bearings

    SKF 51106 Ball Thrust Bearings

    SKF 51106 Ball Thrust Bearings Description bore diameter: 30 mm   static load capacity: 43 kN outside diameter: 47 mm   dynamic load capacity: 19 kN overall width: 11 mm   maximum rpm: 8500 RPM thrust bearing type: Single-Direction   cage material: Steel outside diameter design: Straight   fillet radius:...
    $9.16
    $9.16

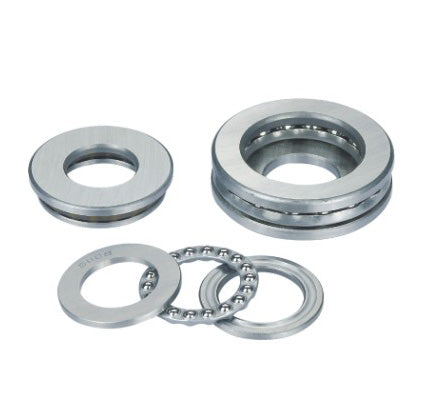

  • SKF 51408 Ball Thrust Bearings

    SKF 51408 Ball Thrust Bearings

    SKF 51408 Ball Thrust Bearings

    SKF 51408 Ball Thrust Bearings Description bore diameter: 40 mm   static load capacity: 183 kN outside diameter: 90 mm   dynamic load capacity: 95.6 kN overall width: 36 mm   maximum rpm: 3400 RPM thrust bearing type: Single-Direction   cage material: Steel outside diameter design: Straight   fillet radius:...
    $47.99
    $47.99
  • SKF 51105 Ball Thrust Bearings

    SKF 51105 Ball Thrust Bearings

    SKF 51105 Ball Thrust Bearings

    SKF 51105 Ball Thrust Bearings Description bore diameter: 25 mm   static load capacity: 39 kN outside diameter: 42 mm   dynamic load capacity: 18.2 kN overall width: 11 mm   maximum rpm: 9000 RPM thrust bearing type: Single-Direction   cage material: Steel outside diameter design: Straight   fillet radius:...
    $8.49
    $8.49
  • SKF 51114 Ball Thrust Bearings

    SKF 51114 Ball Thrust Bearings

    SKF 51114 Ball Thrust Bearings

    SKF 51114 Ball Thrust Bearings Description bore diameter: 70 mm   static load capacity: 120 kN outside diameter: 95 mm   dynamic load capacity: 40.3 kN overall width: 18 mm   maximum rpm: 4500 RPM thrust bearing type: Single-Direction   cage material: Steel outside diameter design: Straight   fillet radius:...
    $28.69
    $28.69
