Cam Followers

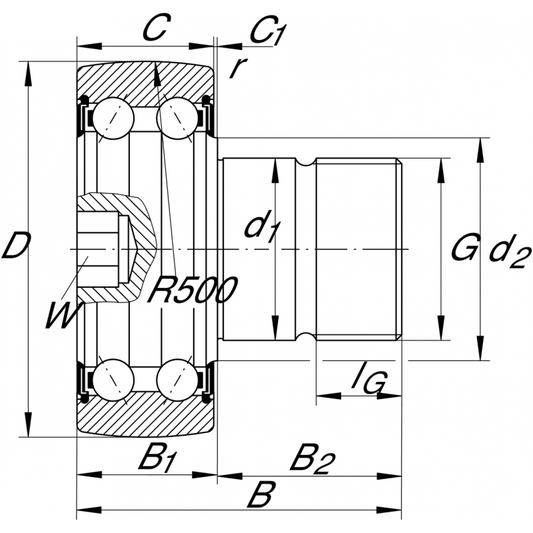

KR5202-2RS Cam Follower bearings Dimensions Maximum witdh of thrust washer B1 17 mm Width of flats W 8 mm Thread M16X1,5 Stop diameter of thrust washer d2 20 mm Width, outer ring C 15.90 mm Radius of outer ring outside profile R 500 mm Thread length IG 19 mm Minimum...

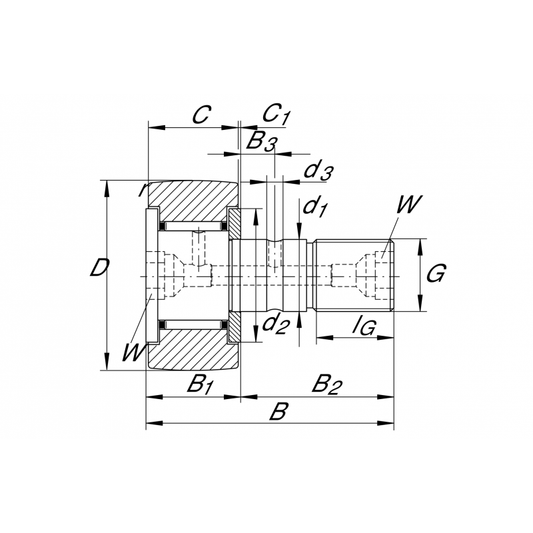

KR40-B Cam Follower bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 2,900 1/min Basic static load rating, radial C0r 16,000 N Width B 58 mm Outside diameter D 40 mm Fatigue load limit, radial Cur 2,130 N Basic dynamic load rating, radial Cr 10,900 N...

KR47X NM Cam Follower bearings

KR35-X-B-NMT Cam Follower bearings Dimensions Maximum witdh of thrust washer B1 19.60 mm Width of flats W 8 mm Thread M16X1,5 Stop diameter of thrust washer d2 27.60 mm Protrusion outer ring to thrust washer C1 0.80 mm Distance to lubrication hole Ca 8 mm Radius of outer ring outside...

KR47X Cam Follower bearings

KR35PPSK Cam Follower bearings

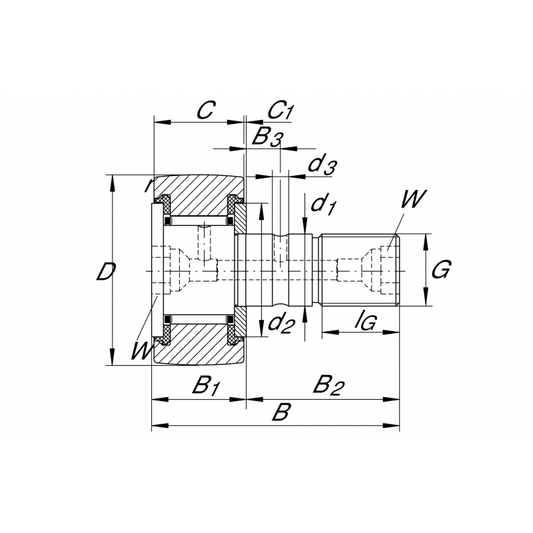

KR47-PP-A Cam Follower bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 2,400 1/min Basic static load rating, radial C0r 26,000 N Width B 66 mm Outside diameter D 47 mm Fatigue load limit, radial Cur 3,450 N Basic dynamic load rating, radial Cr 15,400 N...

KR35-PP-RR-A Cam Follower bearings

KR47-B-NMT Cam Follower bearings

KR35-PP-A Cam Follower bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 3,600 1/min Basic static load rating, radial C0r 14,500 N Width B 52 mm Outside diameter D 35 mm Fatigue load limit, radial Cur 1,860 N Basic dynamic load rating, radial Cr 9,700 N...

KR47B Cam Follower bearings

KR35-B-NMT Cam Follower bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 3,600 1/min Basic static load rating, radial C0r 14,500 N Width B 52 mm Outside diameter D 35 mm Fatigue load limit, radial Cur 1,860 N Basic dynamic load rating, radial Cr 9,700 N...
