KR30-X-B Cam Follower bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 5,500 1/min Basic static load rating, radial C0r 8,700 N Width B 40 mm Outside diameter D 30 mm Fatigue load limit, radial Cur 1,240 N Basic dynamic load rating, radial Cr 6,800 N...

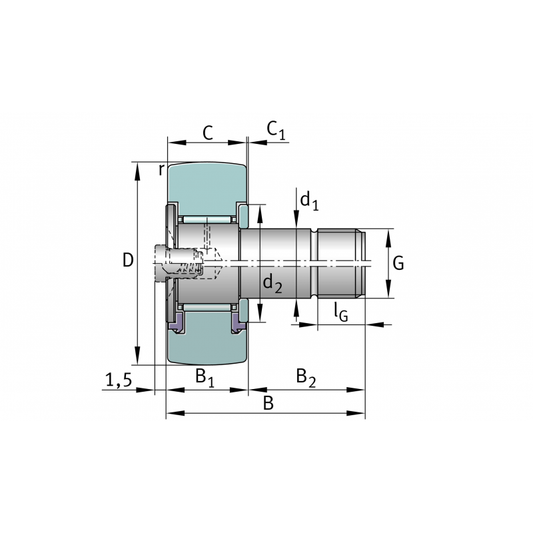

KR19-PP-A Cam Follower bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 11,000 1/min Basic static load rating, radial C0r 4,100 N Width B 32 mm Outside diameter D 19 mm Fatigue load limit, radial Cur 560 N Basic dynamic load rating, radial Cr 3,550 N...
KR22-X-B-NMT Cam Follower bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 8,000 1/min Basic static load rating, radial C0r 5,400 N Width B 36 mm Outside diameter D 22 mm Fatigue load limit, radial Cur 740 N Basic dynamic load rating, radial Cr 4,550 N...
KR16-X-PP-A Cam Follower bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 14,000 1/min Basic static load rating, radial C0r 3,450 N Width B 28 mm Outside diameter D 16 mm Fatigue load limit, radial Cur 465 N Basic dynamic load rating, radial Cr 3,200 N...
KR16-X-NMT Cam Follower bearings Dimensions Maximum witdh of thrust washer B1 12.20 mm Thread length IG 8 mm Stop diameter of thrust washer d2 12.50 mm Protrusion outer ring to thrust washer C1 0.60 mm Bolt/stud length effectively B2 16 mm Radius of outer ring outside profile R 500 mm...
