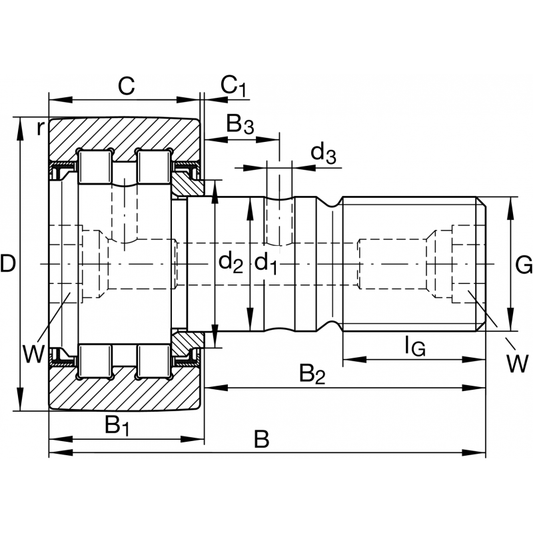

PWKR40-2RS-XL Cam Follower bearings Dimensions Witdh of thrust washer B1 21.60 mm Thread length IG 19 mm Diameter lubrication hole ds 3 mm Minimum chamfer dimension rmin 1 mm Width, outer ring C 20 mm Bolt/stud length effectively B2 36.50 mm Width of flats W 8 mm Thread M18X1,5 Stop...
PWKR40-2RS-RR-XL Cam Follower bearings Dimensions Witdh of thrust washer B1 21.60 mm Thread length IG 19 mm Diameter lubrication hole ds 3 mm Minimum chamfer dimension rmin 1 mm Width, outer ring C 20 mm Bolt/stud length effectively B2 36.50 mm Width of flats W 8 mm Thread M18X1,5 Stop...
PWKR35-2RS-XL Cam Follower bearings Dimensions Witdh of thrust washer B1 19.60 mm Thread length IG 17 mm Diameter lubrication hole ds 3 mm Minimum chamfer dimension rmin 0.60 mm Width, outer ring C 18 mm Bolt/stud length effectively B2 32.50 mm Width of flats W 8 mm Thread M16X1,5 Stop...
PWKR35-2RS-RR-XL Cam Follower bearings Dimensions Witdh of thrust washer B1 19.60 mm Thread length IG 17 mm Diameter lubrication hole ds 3 mm Minimum chamfer dimension rmin 0.60 mm Width, outer ring C 18 mm Bolt/stud length effectively B2 32.50 mm Width of flats W 8 mm Thread M16X1,5 Stop...

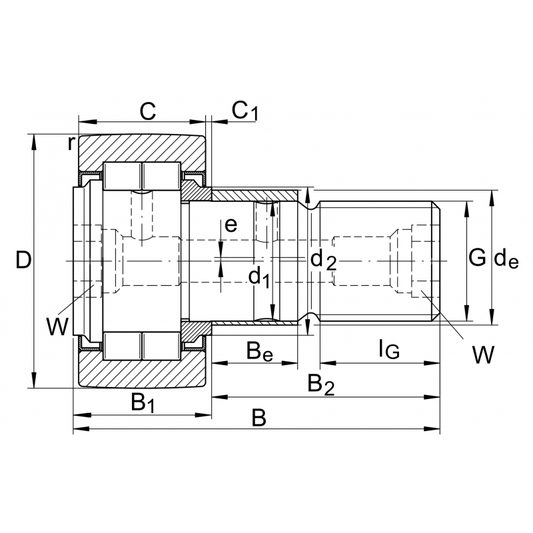

NUKRE90-A Cam Follower bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 76,000 N Speed on permanent grease lubrication nD G 1,800 1/min Basic static load rating, radial C0r 123,000 N Width B 100 mm Outside diameter D 90 mm Permissible static load, radial F0r...
