Stud Type Track Rollers

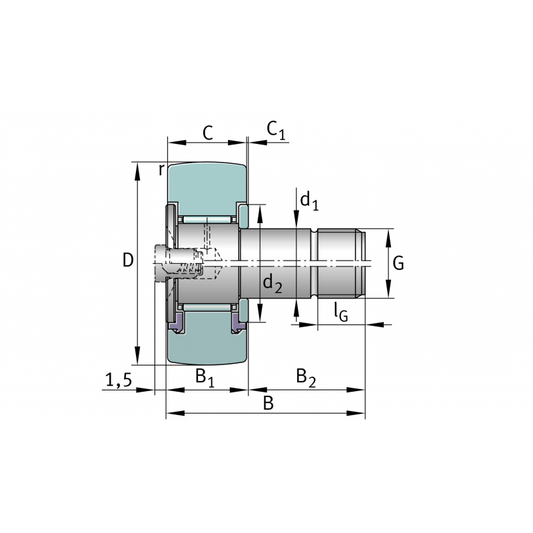

KR16-X-PP-A-NMT Stud type track rollers bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 14,000 1/min Basic static load rating, radial C0r 3,450 N Width B 28 mm Outside diameter D 16 mm Fatigue load limit, radial Cur 465 N Basic dynamic load rating, radial Cr...

KR26 Stud type track rollers bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 8,000 1/min Basic static load rating, radial C0r 6,500 N Width B 36 mm Outside diameter D 26 mm Fatigue load limit, radial Cur 860 N Basic dynamic load rating, radial Cr...

KR22-PP-A-NMT Stud type track rollers bearings

KR22-X-PP-A-NMT Stud type track rollers bearings

KR16-NMT Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 12.20 mm Thread length IG 8 mm Stop diameter of thrust washer d2 12.50 mm Protrusion outer ring to thrust washer C1 0.60 mm Bolt/stud length effectively B2 16 mm Radius of outer ring outside profile R...

KR32 Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 15.20 mm Width of flats W 6 mm Thread M12X1,5 Stop diameter of thrust washer d2 23 mm Protrusion outer ring to thrust washer C1 0.60 mm Distance to lubrication hole Ca 6 mm Radius of outer...

KR26-PP Stud type track rollers bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 8,000 1/min Basic static load rating, radial C0r 6,500 N Width B 36 mm Outside diameter D 26 mm Fatigue load limit, radial Cur 860 N Basic dynamic load rating, radial Cr...

KR22-X Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 13.20 mm Width of flats W 5 mm Thread M10X1 Minimum chamfer dimension rmin 0.30 mm Width, outer ring C 12 mm Radius of outer ring outside profile R 500 mm Thread length IG 12 mm Stop...

KR22-PP Stud type track rollers bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 8,000 1/min Basic static load rating, radial C0r 5,400 N Width B 36 mm Outside diameter D 22 mm Fatigue load limit, radial Cur 740 N Basic dynamic load rating, radial Cr...

KR22 Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 13.20 mm Width of flats W 5 mm Thread M10X1 Minimum chamfer dimension rmin 0.30 mm Width, outer ring C 12 mm Radius of outer ring outside profile R 500 mm Thread length IG 12 mm Stop...

KR19-PP Stud type track rollers bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 11,000 1/min Basic static load rating, radial C0r 4,100 N Width B 32 mm Outside diameter D 19 mm Fatigue load limit, radial Cur 560 N Basic dynamic load rating, radial Cr...

KR47-PP Stud type track rollers bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 2,400 1/min Basic static load rating, radial C0r 26,000 N Width B 66 mm Outside diameter D 47 mm Fatigue load limit, radial Cur 3,450 N Basic dynamic load rating, radial Cr...
