KR16-PP Stud type track rollers bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 14,000 1/min Basic static load rating, radial C0r 3,450 N Width B 28 mm Outside diameter D 16 mm Fatigue load limit, radial Cur 465 N Basic dynamic load rating, radial Cr...

LR5206-2Z-TVH-XL Track rollers bearings Dimensions Diameter of thrust washer d2 40.30 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 22,000 N Fatigue load limit, radial Cur 1,140 N Basic...

KR30-NMT Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 15.20 mm Width of flats W 6 mm Thread M12X1,5 Stop diameter of thrust washer d2 23 mm Protrusion outer ring to thrust washer C1 0.60 mm Distance to lubrication hole Ca 6 mm Radius of outer...

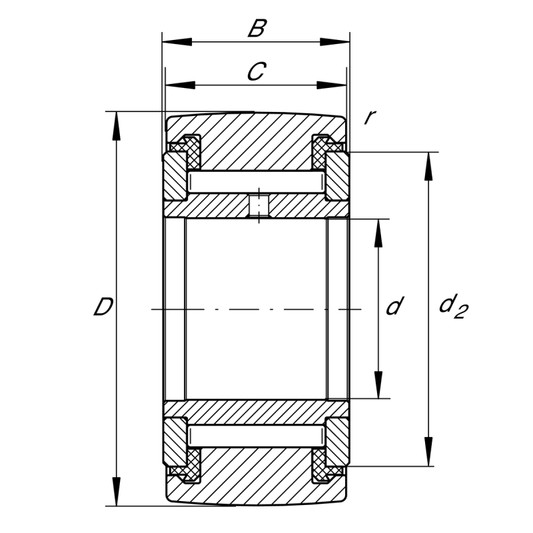

NATV35-PP-A Track rollers bearings Dimensions Width, outer ring C 28 mm Outside diameter of thrust washer d2 58 mm Minimum chamfer dimension rmin 1.10 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 62,000 N Speed on permanent grease lubrication nD G 750 1/min Basic...

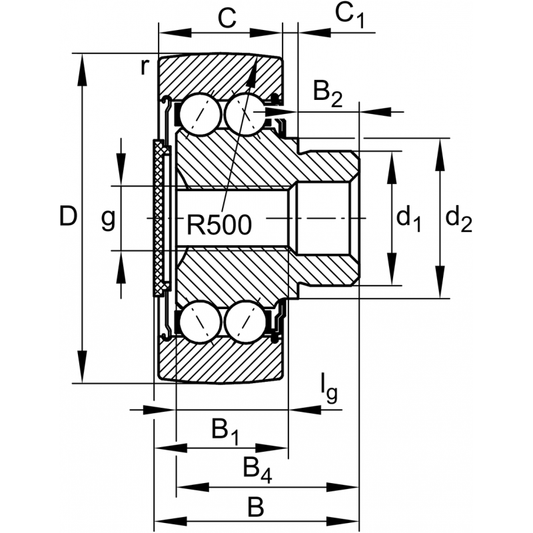

ZL5204-DRS Track rollers bearings Dimensions Maximum witdh of thrust washer B1 25.50 mm Thread length (inner) lg 18 mm Minimum chamfer dimension rmin 1 mm Protrusion outer ring to thrust washer C1 4 mm Length total B4 43 mm Radius of outer ring outside profile R 500 mm Thread inside...

LR206-2RS Track rollers bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 5,500 1/min Basic static load rating, radial C0r 9,900 N Height T 16 mm Outside diameter D 72 mm Fatigue load limit, radial Cur 510 N Basic dynamic load rating, radial Cr 17,600 N...

LFR2202-10-2RSR-RNA Track rollers bearings

LR200-2RSR Track rollers bearings Dimensions Diameter of thrust washer d2 16.60 mm Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 13,000 1/min Basic static load rating, radial C0r 2,380 N Height...

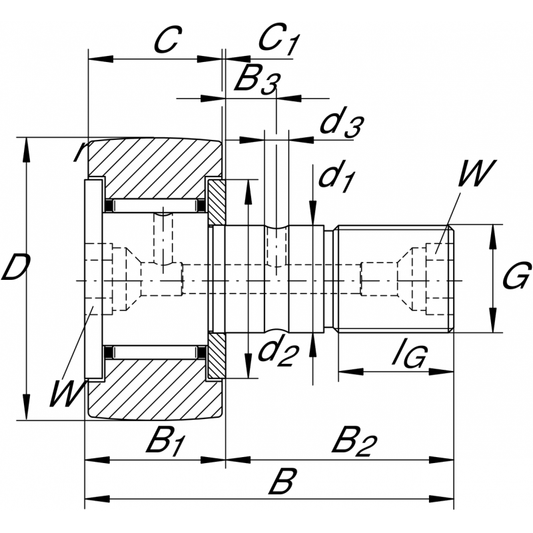

KR32-X Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 15.20 mm Width of flats W 6 mm Thread M12X1,5 Stop diameter of thrust washer d2 23 mm Protrusion outer ring to thrust washer C1 0.60 mm Distance to lubrication hole Ca 6 mm Radius of outer...

KR62-X-PP-A-NMT Stud type track rollers bearings

LR201-X-2RSR Track rollers bearings Dimensions Diameter of thrust washer d2 18.30 mm Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 12,000 1/min Basic static load rating, radial C0r 2,850 N Height...

LR608-2RSR Track rollers bearings Dimensions Diameter of thrust washer d2 10 mm Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 19,000 1/min Basic static load rating, radial C0r 1,280 N Height...

PWKR62-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 30.60 mm Thread length IG 25 mm Diameter lubrication hole ds 4 mm Minimum chamfer dimension rmin 1 mm Width, outer ring C 28 mm Bolt/stud length effectively B2 49.50 mm Width of flats W 14 mm Thread...

LR5003-2RS Track rollers bearings Dimensions Diameter of thrust washer d2 21.60 mm Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 5,400 N Fatigue load limit, radial Cur 275 N Basic...

LR50/7-2RS Track rollers bearings Dimensions Diameter of thrust washer d2 10.50 mm Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 1,700 N Fatigue load limit, radial Cur 83 N Basic...

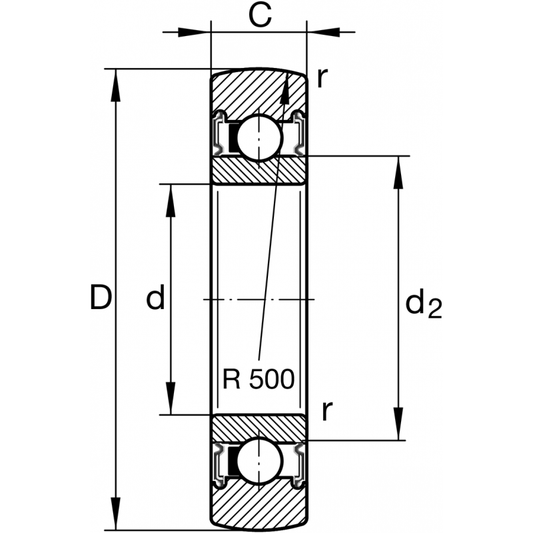

LR205-X-2RSR Track rollers bearings Dimensions Diameter of thrust washer d2 33.50 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 7,000 1/min Basic static load rating, radial C0r 7,300 N Height...

ZL5203-DRS Track rollers bearings Dimensions Maximum witdh of thrust washer B1 21.50 mm Thread length (inner) lg 15 mm Minimum chamfer dimension rmin 0.60 mm Protrusion outer ring to thrust washer C1 3.50 mm Length total B4 37.50 mm Radius of outer ring outside profile R 500 mm Thread inside...

LFR50/5-6-2Z Track rollers bearings

KR35-X-B Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 19.60 mm Width of flats W 8 mm Thread M16X1,5 Stop diameter of thrust washer d2 27.60 mm Protrusion outer ring to thrust washer C1 0.80 mm Distance to lubrication hole Ca 8 mm Radius of outer...

LR5006-2RS Track rollers bearings Dimensions Diameter of thrust washer d2 35.50 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 12,200 N Fatigue load limit, radial Cur 650 N Basic...

PWKR35-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 19.60 mm Thread length IG 17 mm Diameter lubrication hole ds 3 mm Minimum chamfer dimension rmin 0.60 mm Width, outer ring C 18 mm Bolt/stud length effectively B2 32.50 mm Width of flats W 8 mm Thread...

KR62-PP-A-NMT Stud type track rollers bearings

PWKRE90-2RS Stud type track rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 89,000 N Speed on permanent grease lubrication nD G 1,800 1/min Basic static load rating, radial C0r 89,000 N Width B 100 mm Outside diameter D 90 mm Permissible static load,...

KR26-PP Stud type track rollers bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 8,000 1/min Basic static load rating, radial C0r 6,500 N Width B 36 mm Outside diameter D 26 mm Fatigue load limit, radial Cur 860 N Basic dynamic load rating, radial Cr...
