Angular Ball Bearing 7308 B open TN 40x90x23 mmBearings Data
Inside Diameter (mm):
40
Outside Diameter (mm):
90
Width (mm):
23
Contact Angle:
40°
Rows Of Balls:
single row
Seal:
open
Ring Material:
Chrome Steel
Rolling Element Material:
Chrome Steel
Cage Material:
Plastic
Product weight:
0,657 Kg
Yoke Type Track Roller NUTR20-X 20x47x25 mm it is based on double row, full complement cylindrical roller bearings; the roller sets are directly arranged adjacent to each other, two loose rib washers serve as axial support since the bearing hasn´t got a cage, it has a particularly high load capacity...
Bearings Info Inner diameter(mm): 35.00   Outer diameter(mm): 80.00   Width(mm): 21.00   Weight(g): 550.00 21307 CCKäfig: Käfig aus Stahlblech, rollkörpergeführt In addition to this article, we can also offer bearings of the brands FAG, KOYO, NSK, SKF, SNR, etc. on request.21307 CC Spherical roller bearings 35.00 x 80.00 x...
NATR15 Yoke Rollers bearings Dimensions Width, outer ring C 18 mm Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Outside diameter of thrust washer d2 27.60 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 14,500 N Speed...

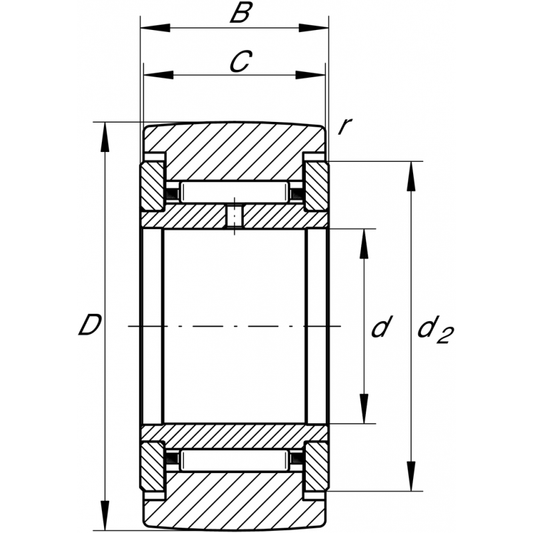

NATR8 Yoke Rollers bearings Dimensions Width, outer ring C 14 mm Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Outside diameter of thrust washer d2 19 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 6,700 N Speed...
81206-TN Axial Cylindrical Roller BearingsBearings Data Inside Diameter (mm): 30 Outside Diameter (mm): 52 Width (mm): 16 Ring Material: Chrome Steel Rolling Element Material: Chrome Steel Cage Material: Plastic Product weight: 0,045 Kg NEED SOME HELP? Bearing shop online - Best Bearings Supplier In China We've tried to give you...
The spindle bearing B71801-E-T-P4S-UL is a super precision angular ball bearing (DIN 628-1) with a contact angle of 25°. It is suitable for the use in machine tools and other applications focusing on the greatest precision. Spindle Bearing / Precision Angular Ball Bearing B71801-E-T-P4S-UL 12x21x5 mm Technical Data Inside Diameter...
Bearings Info Inner diameter(mm): 100.00   Outer diameter(mm): 215.00   Width(mm): 47.00   Weight(g): 8,500.00 21320 EKK: Kegelige Bohrung, Kegel 1:12E: Verstärkte Ausführung In addition to this article, we can also offer bearings of the brands FAG, KOYO, NSK, SKF, SNR, etc. on request.21320 EK Spherical roller bearings 100.00 x...

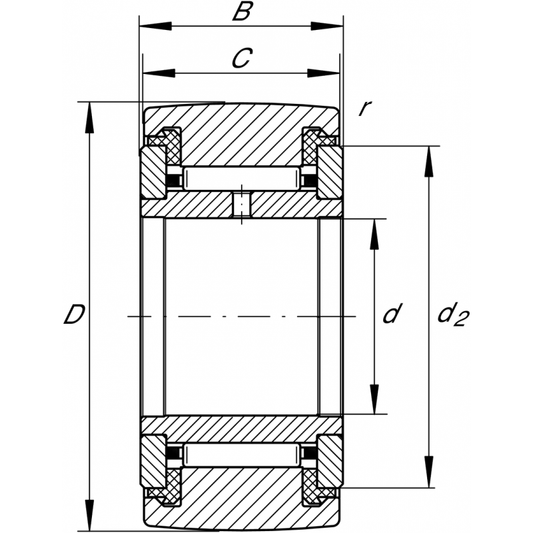

NATR30-PP Yoke Rollers bearings Dimensions Width, outer ring C 28 mm Outside diameter of thrust washer d2 51 mm Minimum chamfer dimension rmin 1 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 39,500 N Speed on permanent grease lubrication nD G 1,300 1/min Basic...
Angular contact ball bearings 3214-B-TVHdouble row, contact angle α = 25° The price is FOB CHINA, Brand（Manufacturer）: FIJ Payment Terms: T/T or paypal or western union. Package: Standard or According to your requirements. Bearing shop online - Best Bearings Supplier In China Not all bearings are equal, and not all bearings...
3201-B-2Z-TVH 3201-2Z Angular contact ball bearings double row, gap seals on both sides Angular contact ball bearings 3201-B-2Z-TVH double row, gap seals on both sides, contact angle α = 25° The price is FOB CHINA, Brand（Manufacturer）: FIJ Payment Terms: T/T or paypal or western union. Package: Standard or According to your requirements. Bearing...
