Angular Ball Bearing 7314 B open TN 70x150x35 mmBearings Data
Inside Diameter (mm):
70
Outside Diameter (mm):
150
Width (mm):
35
Contact Angle:
40°
Rows Of Balls:
single row
Seal:
open
Ring Material:
Chrome Steel
Rolling Element Material:
Chrome Steel
Cage Material:
Plastic
Product weight:
2,700 Kg
LR205-X-2RSR Track rollers bearings Dimensions Diameter of thrust washer d2 33.50 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 7,000 1/min Basic static load rating, radial C0r 7,300 N Height...

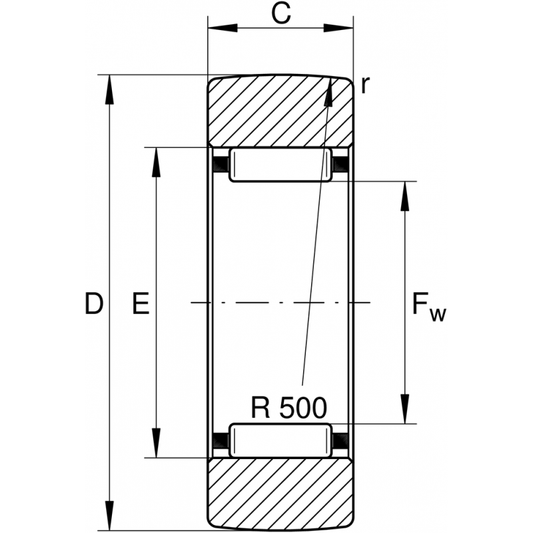

RSTO12 Yoke Rollers bearings Dimensions Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Raceway diameter outer ring E 22 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 4,500 1/min Basic static load rating, radial C0r 10,400 N Width,...
Bearings Info Inner diameter(mm): 130.00   Outer diameter(mm): 210.00   Width(mm): 80.00   Weight(g): 11,000.00 24126 CC/W33W33: Umfangsnut und drei Schmierlöcher im AußenringKäfig: Käfig aus Stahlblech, rollkörpergeführt In addition to this article, we can also offer bearings of the brands FAG, KOYO, NSK, SKF, SNR, etc. on request.24126 CC/W33 Spherical...
Bearings Info Inner diameter(mm): 110.00   Outer diameter(mm): 170.00   Width(mm): 60.00   Weight(g): 5,000.00 24022 CC/C3W33C3: Erhöhte radiale LagerluftW33: Umfangsnut und drei Schmierlöcher im AußenringKäfig: Käfig aus Stahlblech, rollkörpergeführt In addition to this article, we can also offer bearings of the brands FAG, KOYO, NSK, SKF, SNR, etc. on...
KR26 Stud type track rollers bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 8,000 1/min Basic static load rating, radial C0r 6,500 N Width B 36 mm Outside diameter D 26 mm Fatigue load limit, radial Cur 860 N Basic dynamic load rating, radial Cr...
Stainless Steel Angular Ball Bearing SS7200 B open TN 10x30x9 mmBearings Data
Inside Diameter (mm):
10
Outside Diameter (mm):
30
Width (mm):
9
Contact Angle:
40°
Rows Of Balls:
single row
Seal:
open
Ring Material:
Stainless Steel
Rolling Element Material:
Stainless Steel
Cage Material:
Plastic
Product weight:
0,037 Kg
Bearings Info
Inner diameter(mm):
75.00
  Outer diameter(mm):
160.00
  Width(mm):
37.00
  Weight(g):
3,750.00
21315 EE: Verstärkte Ausführung
In addition to this article, we can also offer bearings of the brands FAG, KOYO, NSK, SKF, SNR, etc. on request.21315 E Spherical roller bearings 75.00 x 160.00 x 37.00 mm
KB042XP0 4.25"x4.875"x0.3125" Thin Section Bearings KB042XP0 4.25"x4.875"x0.3125" Technical Data Product Number KB042XP0 System of Measurement Inch Bearing Type Ball For Load Direction Four Point Contact Construction Single Row Seal Type Open Series KB 5/16" x 5/16" Bore Dia 4.25" Bore Dia Tolerance -0.0008"- 0" Outer Dia 4.875" Outer Dia Tolerance...
Stainless Steel Angular Ball Bearing SS7202 B open TN 15x35x11 mmBearings Data
Inside Diameter (mm):
15
Outside Diameter (mm):
35
Width (mm):
11
Contact Angle:
40°
Rows Of Balls:
single row
Seal:
open
Ring Material:
Stainless Steel
Rolling Element Material:
Stainless Steel
Cage Material:
Plastic
Product weight:
0,048 Kg
Bearings Info Inner diameter(mm): 130.00   Outer diameter(mm): 200.00   Width(mm): 52.00   Weight(g): 5,800.00 23026 CCK/C3W33C3: Erhöhte radiale LagerluftK: Kegelige Bohrung, Kegel 1:12W33: Umfangsnut und drei Schmierlöcher im AußenringKäfig: Käfig aus Stahlblech, rollkörpergeführt In addition to this article, we can also offer bearings of the brands FAG, KOYO, NSK,...
SB047CP0 4.75"x5.375"x0.3125" Thin Section Bearings SB047CP0 4.75"x5.375"x0.3125" Technical Data Product Number SB047CP0 System of Measurement Inch Bearing Type Ball For Load Direction Radial Contact Construction Single Row Seal Type Open Series SB 5/16" x 5/16" Bore Dia 4.75" Bore Dia Tolerance -0.0010"– 0" Outer Dia 5.375" Outer Dia Tolerance -0.0008"–...
