Bearings Info Inner diameter(mm): 90.00 &nbsp Outer diameter(mm): 125.00 &nbsp Width(mm): 18.00 &nbsp Weight(g): 585.00 In addition to this article, we can also offer bearings of the brands FAG, KOYO, NSK, SKF, SNR, etc. on request.61918 Deep groove ball bearings 90.00 x 125.00 x 18.00 mm

GE90-DO-HLN Spherical Plain Bearings GE90DOHLN Main & Performance Data Outside Ø D 5.12 mm Static load rating C0r 485,611.511 Width B 2.36 mm Inside Ø d 3.54 mm Dynamic load rating Cr 106,564.748 Width, lower tolerance BUT -0.01 mm Outside diameter, lower tolerance Do UT 0 mm Edge Spacing r1smin...

Rod End T.A.C.225 for Hydraulic Components - Requiring Maintenance 25x64x20 mm suitable for heavy static radial loads and radial shock loads as well as for low axial laods relubrication is possible via the housing and the shaft primarily used for welding to piston rods and the bases of hydraulic cylinders...

GE140-UK-2RS Spherical Plain Bearings 140x210x90 mm GE140UK2RS Housing Connection Diameter Da min 173 mm Edge Spacing r1smin 1 mm Connection measure Inner ring da max 155.80 mm Main & Performance Data Static load rating C0r 5,040,000 Width Outer ring C 70 mm Inside Ø d 140 mm Dynamic load rating...

GE80-UK-2RS-A Spherical Plain Bearings 80x120x55 mm GE80UK2RSA Housing Connection Diameter Da min 99 mm Edge Spacing r1smin 1 mm Connection measure Inner ring da max 89.40 mm Main & Performance Data Static load rating C0r 1,890,000 Width Outer ring C 45 mm Inside Ø d 80 mm Dynamic load rating...

GE 180 ES-2RS Spherical Plain Bearings Brand: FIJ

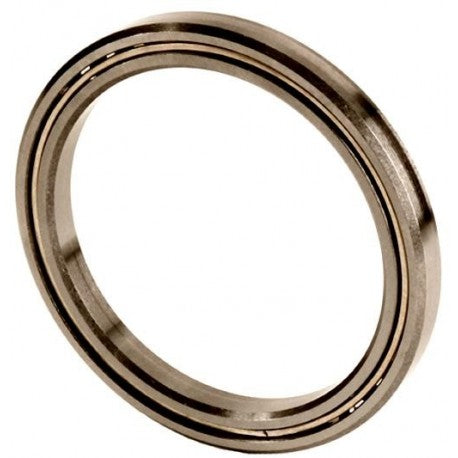

KG050AR0 FIJ Thin-Section Ball Bearings bore Features & Specifications:Radial static load capacity : 11370 lbbearing material : SteelBore Diameter : 5.0000 inoutside diameter : 7.0000 inoverall width : 1.0000 inprecision rating : ABEC 1 (ISO Class Normal)bearing type : Angular Contactball retainer material : Brassclosure type : Openball retainer type...

GE120-DO-2RS-A Spherical Plain Bearings 120x180x85 mm GE120DO2RSA Housing Connection Diameter Da min 150 mm Connection measure Inner ring da max 135.50 mm Main & Performance Data Static load rating C0r 4,760,000 Width B 85 mm Inside Ø d 120 mm Dynamic load rating Cr 952,000 Outside Ø D 180 mm...

GE40-FW-2RS Spherical Plain Bearings 40x68x40 mm GE40FW2RS Housing Connection Diameter Da min 57 mm Edge Spacing r1smin 1 mm Connection measure Inner ring da max 44.70 mm Main & Performance Data Static load rating C0r 600,000 Width Outer ring C 25 mm Inside Ø d 40 mm Dynamic load rating...

Bearings Info Inner diameter(mm): 35.00 &nbsp Outer diameter(mm): 55.00 &nbsp Width(mm): 10.00 &nbsp Weight(g): 80.00 In addition to this article, we can also offer bearings of the brands FAG, KOYO, NSK, SKF, SNR, etc. on request.61907 Deep groove ball bearings 35.00 x 55.00 x 10.00 mm

GE100-DO-2RS-E Spherical Plain Bearings GE100DO2RSE Main & Performance Data Outside Ø D 5.91 mm Static load rating C0r 571,043.165 Width B 2.76 mm Inside Ø d 3.94 mm Dynamic load rating Cr 125,449.64 Width, lower tolerance BUT -0.01 mm Outside diameter, lower tolerance Do UT 0 mm Edge Spacing r1smin...

GE160-DO-2RS-A Spherical Plain Bearings 160x230x105 mm GE160DO2RSA Housing Connection Diameter Da min 191 mm Connection measure Inner ring da max 170.20 mm Main & Performance Data Static load rating C0r 6,800,000 Width B 105 mm Inside Ø d 160 mm Dynamic load rating Cr 1,360,000 Outside Ø D 230 mm...

GE90-DO-2RS-E Spherical Plain Bearings GE90DO2RSE Main & Performance Data Outside Ø D 5.12 mm Static load rating C0r 485,611.511 Width B 2.36 mm Inside Ø d 3.54 mm Dynamic load rating Cr 106,564.748 Width, lower tolerance BUT -0.01 mm Outside diameter, lower tolerance Do UT 0 mm Edge Spacing r1smin...

GE 70 ES-2LS Spherical Plain Bearings Brand: FIJ

GE60-UK-2RS Spherical Plain Bearings 60x90x44 mm GE60UK2RS Housing Connection Diameter Da min 75 mm Edge Spacing r1smin 1 mm Connection measure Inner ring da max 66.80 mm Main & Performance Data Static load rating C0r 1,150,000 Width Outer ring C 36 mm Inside Ø d 60 mm Dynamic load rating...

GE 30 TXE-2LS Spherical Plain Bearings Brand: FIJ
