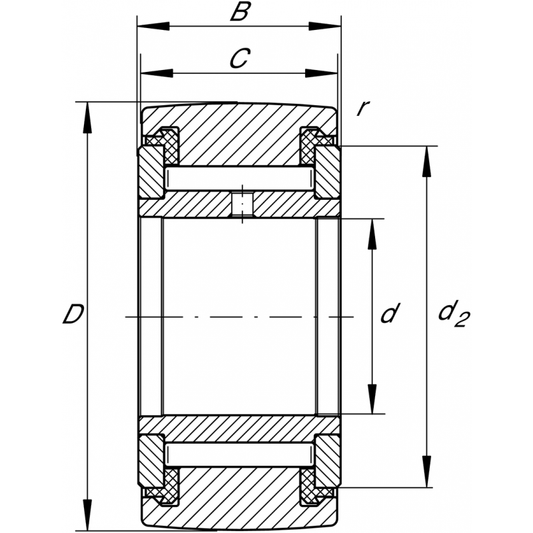

NATV8-PP Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 10,200 N Speed on permanent grease lubrication nD G 2,500 1/min Basic static load rating, radial C0r 11,700 N Width, inner ring Bi 15 mm Bore diameter d 8 mm Permissible static load,...
NUTR3072 Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 68,000 N Speed on permanent grease lubrication nD G 2,600 1/min Basic static load rating, radial C0r 69,000 N Width, inner ring Bi 29 mm Bore diameter d 30 mm Permissible static load,...
NATV6-PP Yoke Rollers bearings Dimensions Width, outer ring C 11 mm Outside diameter of thrust washer d2 15 mm Minimum chamfer dimension rmin 0.15 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 7,100 N Speed on permanent grease lubrication nD G 3,100 1/min Basic...
NUTR30 Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 23,300 N Speed on permanent grease lubrication nD G 2,600 1/min Basic static load rating, radial C0r 54,000 N Width, inner ring Bi 29 mm Bore diameter d 30 mm Permissible static load,...
NUTR15 Yoke Rollers bearings Dimensions Width, outer ring C 18 mm Stop diameter of thrust washer d2 20 mm Minimum chamfer dimension rmin 0.30 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 8,500 N Speed on permanent grease lubrication nD G 6,500 1/min Basic...

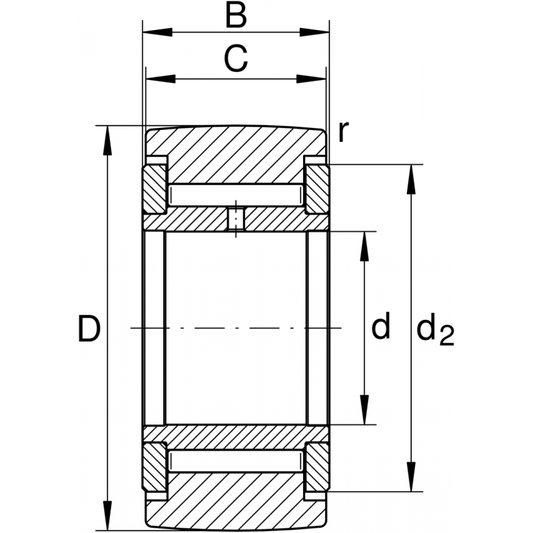

NATV6 Yoke Rollers bearings Dimensions Width, outer ring C 11 mm Minimum chamfer dimension rmin 0.15 mm Radius of outer ring outside profile R 500 mm Outside diameter of thrust washer d2 15 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 7,100 N Speed...
NATV5-PP Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 5,600 N Speed on permanent grease lubrication nD G 3,800 1/min Basic static load rating, radial C0r 6,700 N Width, inner ring Bi 12 mm Bore diameter d 5 mm Permissible static load,...
