NUKRE52 Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 25.60 mm Width, eccentric Be 18 mm Width of flats W 10 mm Thread M20X1,5 Minimum chamfer dimension rmin 1 mm Width, outer ring C 24 mm Eccentricity e 1 mm Diameter of eccentric de 24 mm...
NATV20-PP Yoke Rollers bearings Dimensions Width, outer ring C 24 mm Outside diameter of thrust washer d2 36.50 mm Minimum chamfer dimension rmin 1 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 42,500 N Speed on permanent grease lubrication nD G 1,300 1/min Basic...
NUTR25 Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 17,100 N Speed on permanent grease lubrication nD G 4,200 1/min Basic static load rating, radial C0r 41,500 N Width, inner ring Bi 25 mm Bore diameter d 25 mm Permissible static load,...
NUTR17 Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 12,900 N Speed on permanent grease lubrication nD G 5,500 1/min Basic static load rating, radial C0r 24,800 N Width, inner ring Bi 21 mm Bore diameter d 17 mm Permissible static load,...

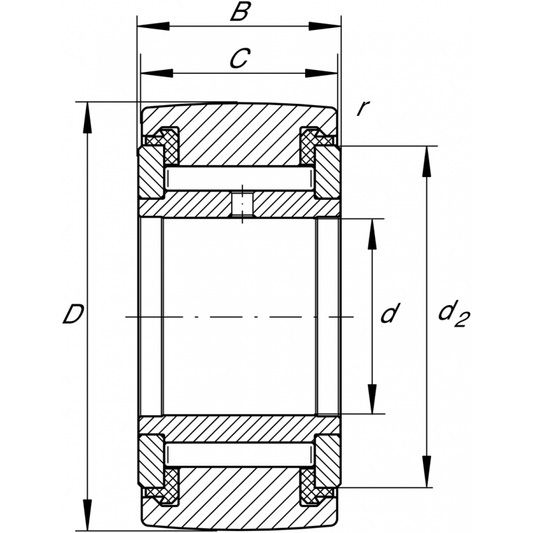

NATV17-PP Yoke Rollers bearings Dimensions Width, outer ring C 20 mm Outside diameter of thrust washer d2 31.50 mm Minimum chamfer dimension rmin 1 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 24,900 N Speed on permanent grease lubrication nD G 1,400 1/min Basic...
