LR5206-2HRS-TVH-XL Track rollers bearings Dimensions Diameter of thrust washer d2 40.30 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 22,000 N Fatigue load limit, radial Cur 1,140 N Basic...
LR5206-2Z-TVH-XL Track rollers bearings Dimensions Diameter of thrust washer d2 40.30 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 22,000 N Fatigue load limit, radial Cur 1,140 N Basic...
LR5307-2Z-TVH-XL Track rollers bearings Dimensions Minimum chamfer dimension rmin 1.50 mm Radius of outer ring outside profile R 500 mm Diameter of thrust washer d2 49.60 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 27,000 N Fatigue load limit, radial Cur 1,870 N Basic...
LR5306-2HRS-TVH-XL Track rollers bearings Dimensions Radius of outer ring outside profile R 500 mm Diameter of thrust washer d2 44.40 mm Minimum chamfer dimension rmin 1.10 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 27,000 N Fatigue load limit, radial Cur 1,520 N Basic...
LR608-2RSR Track rollers bearings Dimensions Diameter of thrust washer d2 10 mm Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 19,000 1/min Basic static load rating, radial C0r 1,280 N Height...
LR5206-X-2Z-TVH-XL Track rollers bearings Dimensions Diameter of thrust washer d2 40.30 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 22,000 N Fatigue load limit, radial Cur 1,140 N Basic...
LR5306-2Z-TVH-XL Track rollers bearings Dimensions Minimum chamfer dimension rmin 1.10 mm Radius of outer ring outside profile R 500 mm Diameter of thrust washer d2 44.40 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 27,000 N Fatigue load limit, radial Cur 1,520 N Basic...

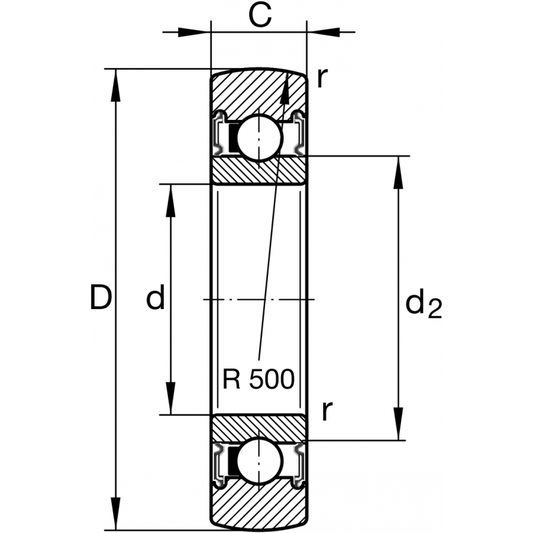

LR605-2RSR Track rollers bearings Dimensions Diameter of thrust washer d2 7.50 mm Minimum chamfer dimension rmin 0.20 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 23,000 1/min Basic static load rating, radial C0r 510 N Height...
