LR5205-2HRS-TVH-XL Track rollers bearings Dimensions Diameter of thrust washer d2 34.20 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 15,800 N Fatigue load limit, radial Cur 810 N Basic...
LR604-2RSR Track rollers bearings Dimensions Diameter of thrust washer d2 6.10 mm Minimum chamfer dimension rmin 0.20 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 24,000 1/min Basic static load rating, radial C0r 360 N Height...
LR5308-2HRS-TVH-XL Track rollers bearings Dimensions Radius of outer ring outside profile R 500 mm Diameter of thrust washer d2 56.80 mm Minimum chamfer dimension rmin 1.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 35,500 N Fatigue load limit, radial Cur 2,380 N Basic...
LR5205-2Z-TVH-XL Track rollers bearings Dimensions Diameter of thrust washer d2 34.20 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 15,800 N Fatigue load limit, radial Cur 810 N Basic...
LR5204-2HRS-TVH-XL Track rollers bearings Dimensions Diameter of thrust washer d2 29.20 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 10,200 N Fatigue load limit, radial Cur 660 N Basic...
LR5204-2Z-TVH-XL Track rollers bearings Dimensions Diameter of thrust washer d2 29.20 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 10,200 N Fatigue load limit, radial Cur 660 N Basic...
LR50/6-2RSR Track rollers bearings Dimensions Diameter of thrust washer d2 9.30 mm Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 1,410 N Fatigue load limit, radial Cur 68 N Basic...

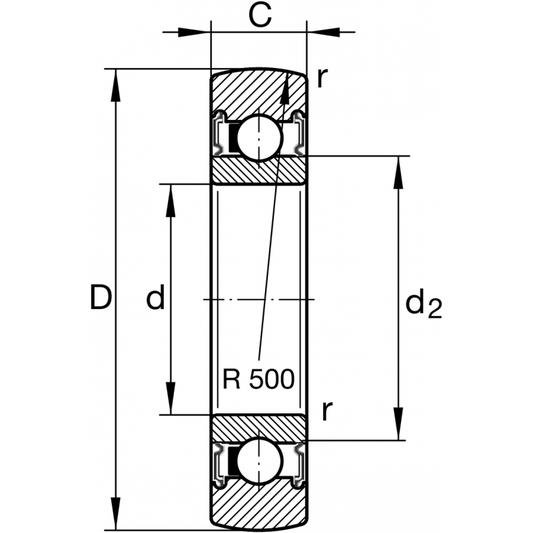

LR209-2RS Track rollers bearings Dimensions Diameter of thrust washer d2 53.20 mm Minimum chamfer dimension rmin 1.10 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 3,600 1/min Basic static load rating, radial C0r 14,100 N Height...
LR5203-2Z-TVH-XL Track rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 10,100 N Fatigue load limit, radial Cur 510 N Basic dynamic load rating, radial Cr 13,700 N Bore diameter d 17 mm Speed on permanent grease lubrication nD G 8,900 1/min Basic static...
