LR5206-2Z Track rollers bearings Manufacturer Part Number SKF 305806 C-2Z (SKF)

KR32-PP Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 15.20 mm Thread length IG 13 mm Diameter lubrication hole ds 3 mm Minimum chamfer dimension rmin 0.60 mm Width, outer ring C 14 mm Bolt/stud length effectively B2 25 mm Width of flats W 6 mm...

LR5204-2Z Track rollers bearings Manufacturer Part Number SKF 305804 C-2Z (SKF)

STO12 Yoke Rollers bearings Dimensions Width, inner ring B 12 mm Raceway diameter inner ring F 16 mm Raceway diameter outer ring E 22 mm Radius of outer ring outside profile R 500 mm Minimum chamfer dimension rmin 0.30 mm Main Dimensions & Performance Data Speed on permanent grease lubrication...

STO40 Yoke Rollers bearings Dimensions Width, inner ring B 20 mm Raceway diameter inner ring F 50 mm Raceway diameter outer ring E 58 mm Radius of outer ring outside profile R 500 mm Minimum chamfer dimension rmin 1 mm Main Dimensions & Performance Data Speed on permanent grease lubrication...

LR5203-2Z Track rollers bearings Manufacturer Part Number SKF 305803 C-2Z (SKF)

STO35-X Yoke Rollers bearings

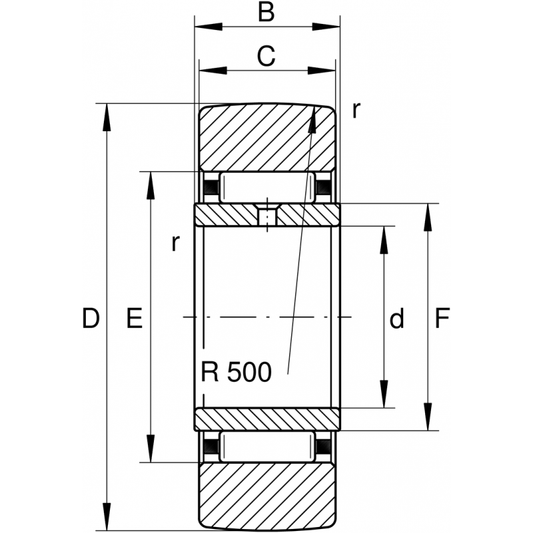

STO10 Yoke Rollers bearings Dimensions Width, inner ring B 12 mm Raceway diameter inner ring F 14 mm Raceway diameter outer ring E 20 mm Radius of outer ring outside profile R 500 mm Minimum chamfer dimension rmin 0.30 mm Main Dimensions & Performance Data Speed on permanent grease lubrication...

LR5200-2Z Track rollers bearings Manufacturer Part Number SKF 305800 C-2Z (SKF)

STO35 Yoke Rollers bearings Dimensions Width, inner ring B 20 mm Raceway diameter inner ring F 42 mm Raceway diameter outer ring E 50 mm Radius of outer ring outside profile R 500 mm Minimum chamfer dimension rmin 0.60 mm Main Dimensions & Performance Data Speed on permanent grease lubrication...

ZL5206-DRS Track rollers bearings Dimensions Maximum witdh of thrust washer B1 29 mm Thread length (inner) lg 20 mm Minimum chamfer dimension rmin 1 mm Protrusion outer ring to thrust washer C1 4.50 mm Length total B4 56.50 mm Radius of outer ring outside profile R 500 mm Thread inside...

RSTO5-TV Yoke Rollers bearings Dimensions Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Raceway diameter outer ring E 10 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 16,000 1/min Basic static load rating, radial C0r 2,650 N Width,...
