RSTO45 Yoke Rollers bearings Dimensions Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Raceway diameter outer ring E 63 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 750 1/min Basic static load rating, radial C0r 44,000 N Width,...

STO30 Yoke Rollers bearings Dimensions Width, inner ring B 20 mm Raceway diameter inner ring F 38 mm Raceway diameter outer ring E 46 mm Radius of outer ring outside profile R 500 mm Minimum chamfer dimension rmin 0.60 mm Main Dimensions & Performance Data Speed on permanent grease lubrication...

ZL5204-DRS Track rollers bearings Dimensions Maximum witdh of thrust washer B1 25.50 mm Thread length (inner) lg 18 mm Minimum chamfer dimension rmin 1 mm Protrusion outer ring to thrust washer C1 4 mm Length total B4 43 mm Radius of outer ring outside profile R 500 mm Thread inside...

STO25 Yoke Rollers bearings Dimensions Width, inner ring B 16 mm Raceway diameter inner ring F 30 mm Raceway diameter outer ring E 37 mm Radius of outer ring outside profile R 500 mm Minimum chamfer dimension rmin 0.30 mm Main Dimensions & Performance Data Speed on permanent grease lubrication...

RSTO40 Yoke Rollers bearings Dimensions Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Raceway diameter outer ring E 58 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 850 1/min Basic static load rating, radial C0r 40,000 N Width,...

ZL5202-DRS Track rollers bearings Dimensions Maximum witdh of thrust washer B1 20.50 mm Thread length (inner) lg 15 mm Minimum chamfer dimension rmin 0.60 mm Protrusion outer ring to thrust washer C1 3.50 mm Length total B4 34 mm Radius of outer ring outside profile R 500 mm Thread inside...

STO20-X Yoke Rollers bearings

RSTO35 Yoke Rollers bearings Dimensions Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Raceway diameter outer ring E 50 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 1,100 1/min Basic static load rating, radial C0r 41,000 N Width,...

ZL206-DRS Track rollers bearings

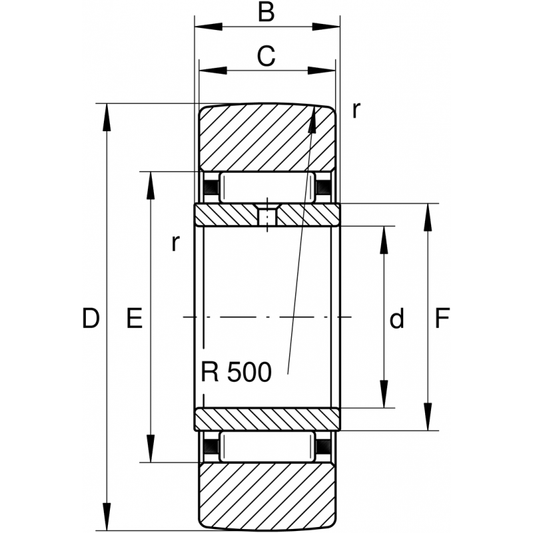

STO20 Yoke Rollers bearings Dimensions Width, inner ring B 16 mm Raceway diameter inner ring F 25 mm Raceway diameter outer ring E 32 mm Radius of outer ring outside profile R 500 mm Minimum chamfer dimension rmin 0.30 mm Main Dimensions & Performance Data Speed on permanent grease lubrication...

STO8-X-TN Yoke Rollers bearings

RSTO30 Yoke Rollers bearings Dimensions Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Raceway diameter outer ring E 46 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 1,300 1/min Basic static load rating, radial C0r 35,500 N Width,...
