NATV12 Yoke Rollers bearings Dimensions Width, outer ring C 14 mm Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Outside diameter of thrust washer d2 25 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 14,900 N Speed...

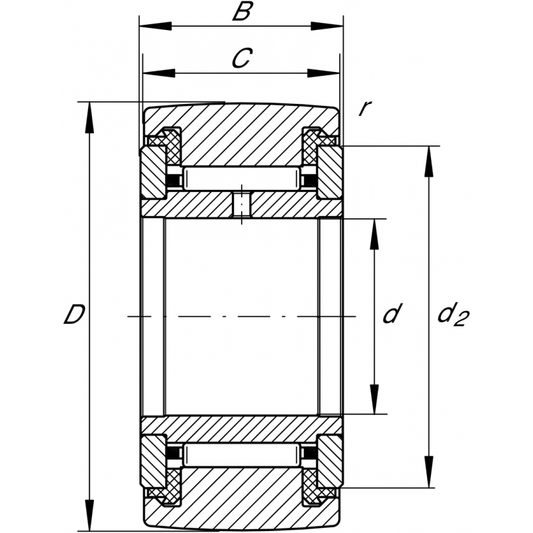

NATR35-PP Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 45,000 N Speed on permanent grease lubrication nD G 1,000 1/min Basic static load rating, radial C0r 45,000 N Width, inner ring Bi 29 mm Bore diameter d 35 mm Permissible static load,...
NATV10 Yoke Rollers bearings Dimensions Width, outer ring C 14 mm Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Outside diameter of thrust washer d2 23 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 14,800 N Speed...

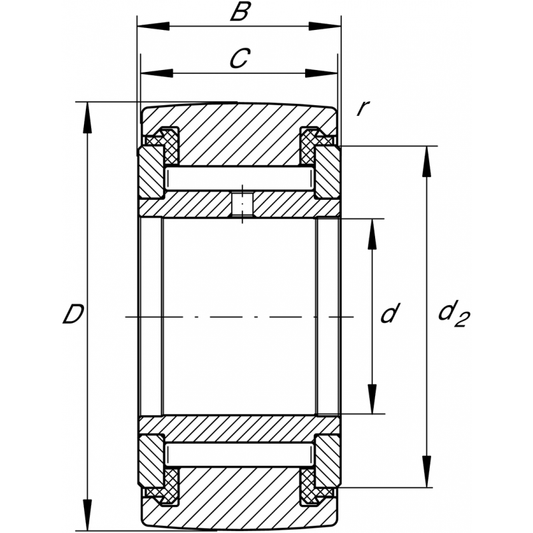

NATV50-PP Yoke Rollers bearings Dimensions Width, outer ring C 30 mm Outside diameter of thrust washer d2 76 mm Minimum chamfer dimension rmin 1.10 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 78,000 N Speed on permanent grease lubrication nD G 550 1/min Basic...

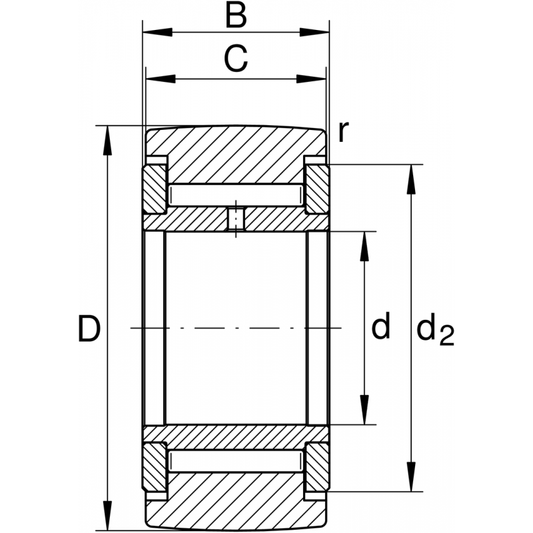

NATV5 Yoke Rollers bearings Dimensions Width, outer ring C 11 mm Minimum chamfer dimension rmin 0.15 mm Radius of outer ring outside profile R 500 mm Outside diameter of thrust washer d2 12.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 5,600 N Speed...
NATR8 Yoke Rollers bearings Dimensions Width, outer ring C 14 mm Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Outside diameter of thrust washer d2 19 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 6,700 N Speed...
