NATV40-X-PP-A Yoke Rollers bearings

NATR5-X-PP-A Yoke Rollers bearings

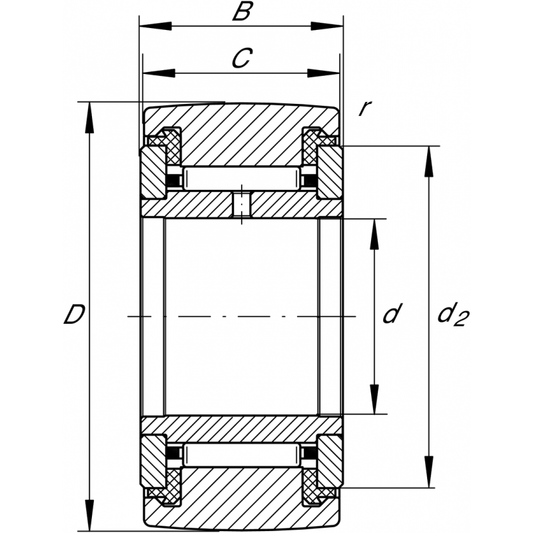

NATR20-PP Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 26,000 N Speed on permanent grease lubrication nD G 2,400 1/min Basic static load rating, radial C0r 26,000 N Width, inner ring Bi 25 mm Bore diameter d 20 mm Permissible static load,...

NATR5-X Yoke Rollers bearings

NATV35-PP Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 62,000 N Speed on permanent grease lubrication nD G 750 1/min Basic static load rating, radial C0r 72,000 N Width, inner ring Bi 29 mm Bore diameter d 35 mm Permissible static load,...

NATR17-X Yoke Rollers bearings

NATR50-X-PP-A Yoke Rollers bearings

NATR15-X Yoke Rollers bearings

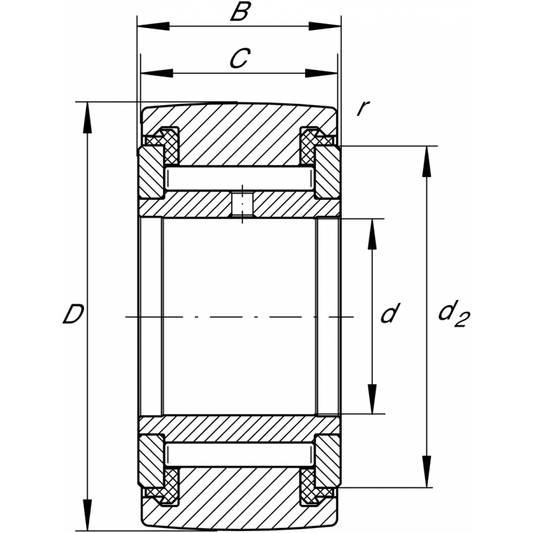

NATV30-PP Yoke Rollers bearings Dimensions Width, outer ring C 28 mm Outside diameter of thrust washer d2 51 mm Minimum chamfer dimension rmin 1 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 55,000 N Speed on permanent grease lubrication nD G 850 1/min Basic...

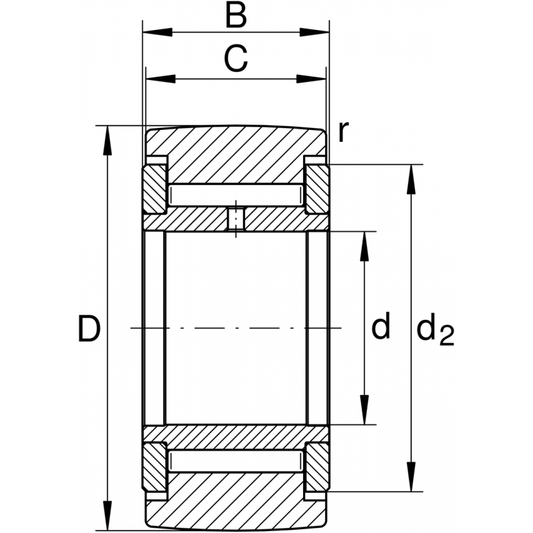

NATV30 Yoke Rollers bearings Dimensions Width, outer ring C 28 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Outside diameter of thrust washer d2 51 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 55,000 N Speed...

NATR50-PP Yoke Rollers bearings Dimensions Width, outer ring C 30 mm Outside diameter of thrust washer d2 76 mm Minimum chamfer dimension rmin 1.10 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 60,000 N Speed on permanent grease lubrication nD G 650 1/min Basic...

NATR15 Yoke Rollers bearings Dimensions Width, outer ring C 18 mm Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Outside diameter of thrust washer d2 27.60 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 14,500 N Speed...
