High-Performance Axial Ball Bearings: Precision in Motion

Our Axial Ball Bearings (also known as Thrust Deep Groove Ball Bearings) are engineered to handle high-magnitude thrust loads with exceptional precision. Designed for applications where axial forces dominate, these bearings ensure smooth rotation and long-term mechanical reliability.

Key Features & Benefits

  • Superior Axial Load Capacity: Specifically optimized to support heavy loads parallel to the shaft, maintaining stability under high-pressure conditions.

  • High-Grade Chrome Steel (GCr15): Manufactured using premium materials to ensure high fatigue strength and wear resistance.

  • Low Friction & Quiet Operation: Precision-ground raceways minimize energy loss and noise, contributing to a longer service life for the entire machinery.

  • Interchangeable Components: Designed with separable washers (shaft and housing washers) and ball-and-cage assemblies for easy installation and maintenance.

Technical Specifications

Feature Specification
Bearing Type Single-direction / Double-direction
Material High-Carbon Chromium Steel / Stainless Steel
Tolerance Class P0, P6, P5 (ISO Standard)
Cage Options Pressed Steel, Machined Brass, or Synthetic Resin

439 products

  • 51226 Axial Deep Groove Ball Bearings

    51226 Axial Deep Groove Ball Bearings

    51226 Axial Deep Groove Ball Bearings

    Axial Deep Groove Ball Bearing 51226 130x190x45 mmBearings Data Inside Diameter (mm): 130 Axial Inside Diameter (mm): 133 Outside Diameter (mm): 190 Width (mm): 45 Rows Of Balls: single row Flange: no Ring Material: Chrome Steel Rolling Element Material: Chrome Steel Cage Material: Sheet Steel Full Complement Ball Set: no...
    $55.10
    $55.10

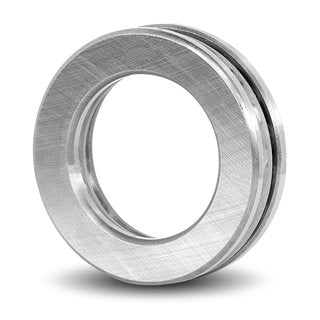

  • 51122 Axial Deep Groove Ball Bearings

    51122 Axial Deep Groove Ball Bearings

    51122 Axial Deep Groove Ball Bearings

    Axial Deep Groove Ball Bearing 51122 110x145x25 mmBearings Data Inside Diameter (mm): 110 Axial Inside Diameter (mm): 112 Outside Diameter (mm): 145 Width (mm): 25 Rows Of Balls: single row Flange: no Ring Material: Chrome Steel Rolling Element Material: Chrome Steel Cage Material: Sheet Steel Full Complement Ball Set: no...
    $9.97
    $9.97
  • 51126 Axial Deep Groove Ball Bearings

    51126 Axial Deep Groove Ball Bearings

    51126 Axial Deep Groove Ball Bearings

    Axial Deep Groove Ball Bearing 51126 130x170x30 mmBearings Data Inside Diameter (mm): 130 Axial Inside Diameter (mm): 132 Outside Diameter (mm): 170 Width (mm): 30 Rows Of Balls: single row Flange: no Ring Material: Chrome Steel Rolling Element Material: Chrome Steel Cage Material: Sheet Steel Full Complement Ball Set: no...
    $16.84
    $16.84

  • 52324-M Axial Deep Groove Ball Bearings

    52324-M Axial Deep Groove Ball Bearings

    Double Direction Axial Deep Groove Ball Bearing 52324-M 100x210x123 mmBearings Data Inside Diameter (mm): 100 Axial Inside Diameter (mm): 123 Outside Diameter (mm): 210 Width (mm): 123 Rows Of Balls: double row Flange: no Ring Material: Chrome Steel Rolling Element Material: Chrome Steel Cage Material: Sheet Steel Full Complement Ball...
    $412.64
    $412.64

  • 52224 Axial Deep Groove Ball Bearings

    52224 Axial Deep Groove Ball Bearings

    Double Direction Axial Deep Groove Ball Bearing 52224 100x170x68 mmBearings Data Inside Diameter (mm): 100 Axial Inside Diameter (mm): 123 Outside Diameter (mm): 170 Width (mm): 68 Rows Of Balls: double row Flange: no Ring Material: Chrome Steel Rolling Element Material: Chrome Steel Cage Material: Sheet Steel Full Complement Ball...
    $63.10
    $63.10

  • 52324 Axial Deep Groove Ball Bearings

    52324 Axial Deep Groove Ball Bearings

    Double Direction Axial Deep Groove Ball Bearing 52324 100x210x123 mmBearings Data Inside Diameter (mm): 100 Axial Inside Diameter (mm): 123 Outside Diameter (mm): 210 Width (mm): 123 Rows Of Balls: double row Flange: no Ring Material: Chrome Steel Rolling Element Material: Chrome Steel Cage Material: Sheet Steel Full Complement Ball...
    $343.86
    $343.86

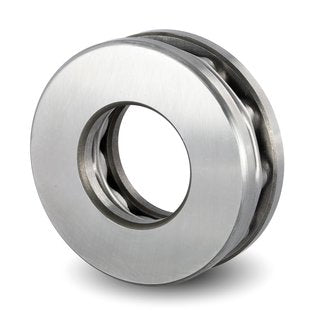

  • 51324-M Axial Deep Groove Ball Bearings

    51324-M Axial Deep Groove Ball Bearings

    51324-M Axial Deep Groove Ball Bearings

    Axial Deep Groove Ball Bearing 51324-M 120x210x70 mmBearings Data Inside Diameter (mm): 120 Axial Inside Diameter (mm): 123 Outside Diameter (mm): 210 Width (mm): 70 Rows Of Balls: single row Flange: no Ring Material: Chrome Steel Rolling Element Material: Chrome Steel Cage Material: Brass Full Complement Ball Set: no Product...
    $167.44
    $167.44

  • 52220 Axial Deep Groove Ball Bearings

    52220 Axial Deep Groove Ball Bearings

    Double Direction Axial Deep Groove Ball Bearing 52220 85x150x67 mmBearings Data Inside Diameter (mm): 85 Axial Inside Diameter (mm): 103 Outside Diameter (mm): 150 Width (mm): 67 Rows Of Balls: double row Flange: no Ring Material: Chrome Steel Rolling Element Material: Chrome Steel Cage Material: Sheet Steel Full Complement Ball...
    $28.71
    $28.71
  • 51320 Axial Deep Groove Ball Bearings

    51320 Axial Deep Groove Ball Bearings

    51320 Axial Deep Groove Ball Bearings

    Axial Deep Groove Ball Bearing 51320 100x170x55 mmBearings Data Inside Diameter (mm): 100 Axial Inside Diameter (mm): 103 Outside Diameter (mm): 170 Width (mm): 55 Rows Of Balls: single row Flange: no Ring Material: Chrome Steel Rolling Element Material: Chrome Steel Cage Material: Sheet Steel Full Complement Ball Set: no...
    $36.03
    $36.03

  • 51124 Axial Deep Groove Ball Bearings

    51124 Axial Deep Groove Ball Bearings

    Axial Deep Groove Ball Bearing 51124 120x155x25 mmBearings Data Inside Diameter (mm): 120 Axial Inside Diameter (mm): 122 Outside Diameter (mm): 155 Width (mm): 25 Rows Of Balls: single row Flange: no Ring Material: Chrome Steel Rolling Element Material: Chrome Steel Cage Material: Sheet Steel Full Complement Ball Set: no...
    $13.81
    $13.81

  • 52326-M Axial Deep Groove Ball Bearings

    52326-M Axial Deep Groove Ball Bearings

    Double Direction Axial Deep Groove Ball Bearing 52326-M 110x225x130 mmBearings Data Inside Diameter (mm): 110 Axial Inside Diameter (mm): 134 Outside Diameter (mm): 225 Width (mm): 130 Rows Of Balls: double row Flange: no Ring Material: Chrome Steel Rolling Element Material: Chrome Steel Cage Material: Sheet Steel Full Complement Ball...
    $465.39
    $465.39
  • 51220 Axial Deep Groove Ball Bearings

    51220 Axial Deep Groove Ball Bearings

    51220 Axial Deep Groove Ball Bearings

    Axial Deep Groove Ball Bearing 51220 100x160x38 mmBearings Data Inside Diameter (mm): 100 Axial Inside Diameter (mm): 103 Outside Diameter (mm): 160 Width (mm): 38 Rows Of Balls: single row Flange: no Ring Material: Chrome Steel Rolling Element Material: Chrome Steel Cage Material: Sheet Steel Full Complement Ball Set: no...
    $21.15
    $21.15
