SNL509-TG / Shaft: 40 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
40
a (mm):
205
e (mm):
170
w (mm):
109
h (mm):
60
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
2,900 Kg
Unit of measurement: mm

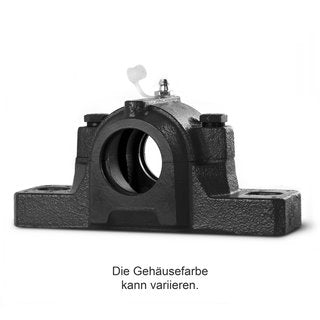

SNL216-TG / Shaft: 80 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
80
a (mm):
315
e (mm):
260
w (mm):
177
h (mm):
95
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
9,000 Kg
Unit of measurement: mm

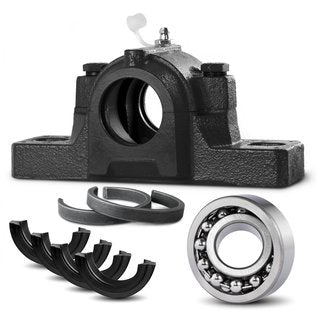

SNL209-TG / Shaft: 45 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
45
a (mm):
205
e (mm):
170
w (mm):
109
h (mm):
60
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
2,750 Kg
Unit of measurement: mm
SNL215-TG / Shaft: 75 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
75
a (mm):
280
e (mm):
230
w (mm):
155
h (mm):
80
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
6,600 Kg
Unit of measurement: mm
SNL508-607-TG / Shaft: 35 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
35
a (mm):
205
e (mm):
170
w (mm):
108
h (mm):
60
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
2,900 Kg
Unit of measurement: mm
SNL513-611-TG / Shaft: 60 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
60
a (mm):
275
e (mm):
230
w (mm):
148
h (mm):
80
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
6,500 Kg
Unit of measurement: mm
SNL208-307TG / Shaft: 40 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
40
a (mm):
205
e (mm):
170
w (mm):
108
h (mm):
60
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
2,750 Kg
Unit of measurement: mm
SNL213-TG / Shaft: 65 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
65
a (mm):
275
e (mm):
230
w (mm):
149
h (mm):
80
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
6,100 Kg
Unit of measurement: mm
SNL507-606-TG / Shaft: 30 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
30
a (mm):
185
e (mm):
150
w (mm):
93
h (mm):
50
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
2,200 Kg
Unit of measurement: mm
SNL207-TG / Shaft: 35 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
35
a (mm):
185
e (mm):
150
w (mm):
93
h (mm):
50
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
2,100 Kg
Unit of measurement: mm
SNL512-610-TG / Shaft: 55 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
55
a (mm):
255
e (mm):
210
w (mm):
133
h (mm):
70
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
5,100 Kg
Unit of measurement: mm

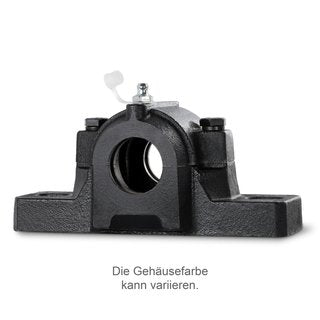

SNL506-605-TG / Shaft: 25 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
25
a (mm):
185
e (mm):
150
w (mm):
89
h (mm):
50
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
2,000 Kg
Unit of measurement: mm
