SNL212-TG / Shaft: 60 mm Split Plummer Block HousingTechnical Data
Inside Diameter (mm):
60
a (mm):
255
e (mm):
210
w (mm):
134
h (mm):
70
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
4,750 Kg
Unit of measurement: mm
SNL206-305TG / Shaft: 30 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
30
a (mm):
185
e (mm):
150
w (mm):
89
h (mm):
50
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
1,900 Kg
Unit of measurement: mm

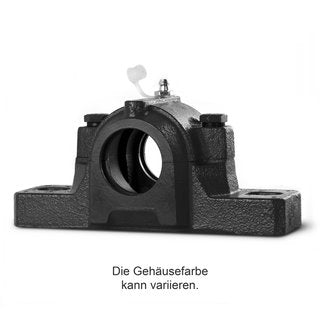

SNL218-TG / Shaft: 90 mm Split Plummer Block HousingTechnical Data
Inside Diameter (mm):
90
a (mm):
345
e (mm):
290
w (mm):
194
h (mm):
100
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
13,000 Kg
Unit of measurement: mm
SNL211-TG / Shaft: 55 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
55
a (mm):
255
e (mm):
210
w (mm):
128
h (mm):
70
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
4,200 Kg
Unit of measurement: mm
SNL517-TG / Shaft: 75 mm Split Plummer Block HousingTechnical Data
Inside Diameter (mm):
75
a (mm):
320
e (mm):
260
w (mm):
183
h (mm):
95
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
10,000 Kg
Unit of measurement: mm
SNL505-TG / Shaft: 20 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
20
a (mm):
165
e (mm):
130
w (mm):
74
h (mm):
40
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
1,450 Kg
Unit of measurement: mm

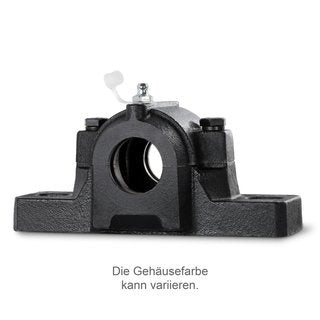

SNL510-608-TG / Shaft: 45 mm Split Plummer Block Housing Technical Data
Inside Diameter (mm):
45
a (mm):
205
e (mm):
170
w (mm):
113
h (mm):
60
Housing Type:
Plummer Block
Temperature Resistance:
-40° bis +100° C
Housing Material:
Cast Iron
Product weight:
3,200 Kg
Unit of measurement: mm
Regular price
$69.45
Regular priceSale price
$69.45
Unit price/ per
