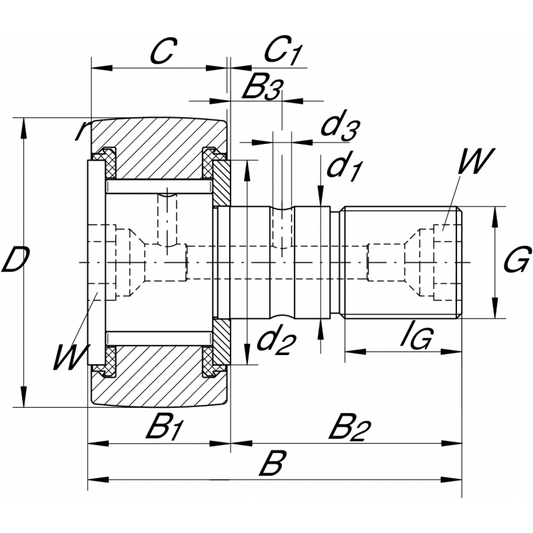

KRV47-PP Stud type track rollers bearings Dimensions Witdh of thrust washer B1 25.60 mm Thread length IG 21 mm Diameter lubrication hole ds 4 mm Minimum chamfer dimension rmin 1 mm Width, outer ring C 24 mm Bolt/stud length effectively B2 40.50 mm Width of flats W 10 mm Thread...
KRV80-PP Stud type track rollers bearings Dimensions Witdh of thrust washer B1 37 mm Thread length IG 32 mm Diameter lubrication hole ds 4 mm Minimum chamfer dimension rmin 1.10 mm Width, outer ring C 35 mm Bolt/stud length effectively B2 63 mm Width of flats W 14 mm Thread...
KRV40-PP Stud type track rollers bearings Dimensions Witdh of thrust washer B1 21.60 mm Thread length IG 19 mm Diameter lubrication hole ds 3 mm Minimum chamfer dimension rmin 1 mm Width, outer ring C 20 mm Bolt/stud length effectively B2 36.50 mm Width of flats W 8 mm Thread...
