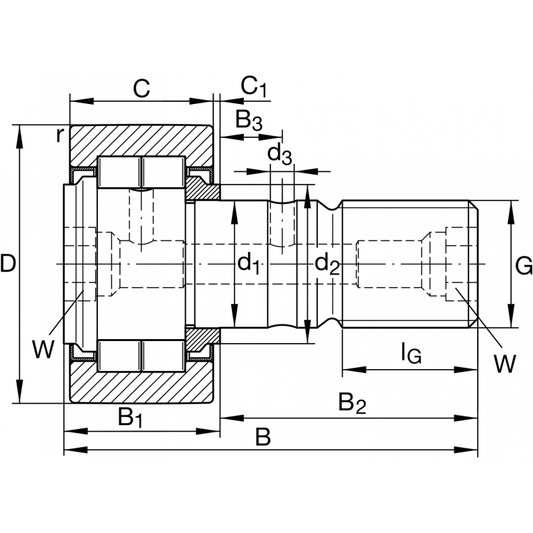

NUKR47 Stud type track rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 16,300 N Speed on permanent grease lubrication nD G 4,200 1/min Basic static load rating, radial C0r 38,000 N Width B 66 mm Outside diameter D 47 mm Permissible static load,...
KRV90-PP Stud type track rollers bearings Dimensions Witdh of thrust washer B1 37 mm Thread length IG 32 mm Diameter lubrication hole ds 4 mm Minimum chamfer dimension rmin 1.10 mm Width, outer ring C 35 mm Bolt/stud length effectively B2 63 mm Width of flats W 14 mm Thread...
