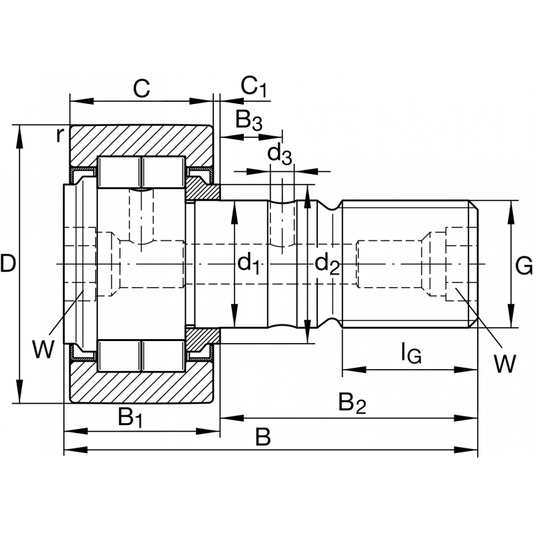

NUKR40 Stud type track rollers bearings Dimensions Witdh of thrust washer B1 21.60 mm Thread length IG 19 mm Diameter lubrication hole ds 3 mm Minimum chamfer dimension rmin 1 mm Width, outer ring C 20 mm Bolt/stud length effectively B2 36.50 mm Width of flats W 8 mm Thread...
NUKR35 Stud type track rollers bearings Dimensions Witdh of thrust washer B1 19.60 mm Thread length IG 17 mm Diameter lubrication hole ds 3 mm Minimum chamfer dimension rmin 0.60 mm Width, outer ring C 18 mm Bolt/stud length effectively B2 32.50 mm Width of flats W 8 mm Thread...
KRV62-PP Stud type track rollers bearings Dimensions Witdh of thrust washer B1 30.60 mm Thread length IG 25 mm Diameter lubrication hole ds 4 mm Minimum chamfer dimension rmin 1 mm Width, outer ring C 29 mm Bolt/stud length effectively B2 49.50 mm Width of flats W 14 mm Thread...
