Stud Type Track Rollers

NUKR90-NMT Stud type track rollers bearings

ZLE5204-2Z Stud type track rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 10,200 N Fatigue load limit, radial Cur 590 N Basic dynamic load rating, radial Cr 15,400 N Diameter of eccentric de 24 mm Speed on permanent grease lubrication nD G 7,300...

ZLE5207-2Z Stud type track rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 22,100 N Fatigue load limit, radial Cur 1,320 N Basic dynamic load rating, radial Cr 30,000 N Diameter of eccentric de 35 mm Speed on permanent grease lubrication nD G 4,650...

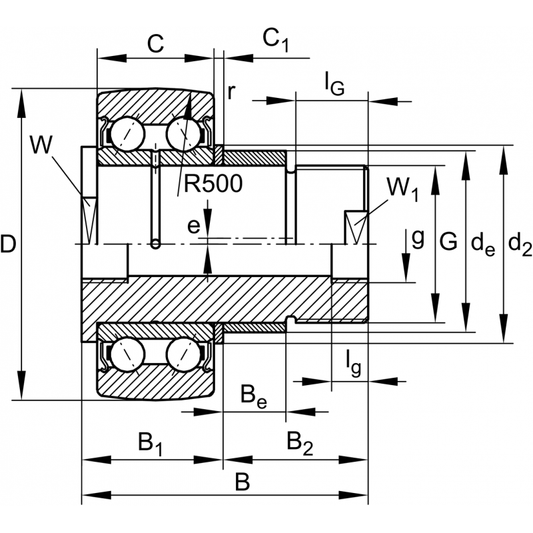

ZLE5205-2Z Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 32 mm Minimum thread length IG min 28 mm Thread length (inner) lg 8 mm Width, eccentric Be 25 mm Width of flats W 17 mm Stop diameter of thrust washer d2 30 mm Width, outer ring...

PWKRE52-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 25.60 mm Width, eccentric Be 18 mm Width of flats W 10 mm Thread M20X1,5 Minimum chamfer dimension rmin 1 mm Width, outer ring C 24 mm Eccentricity e 1 mm Diameter of eccentric de 24 mm Thread...

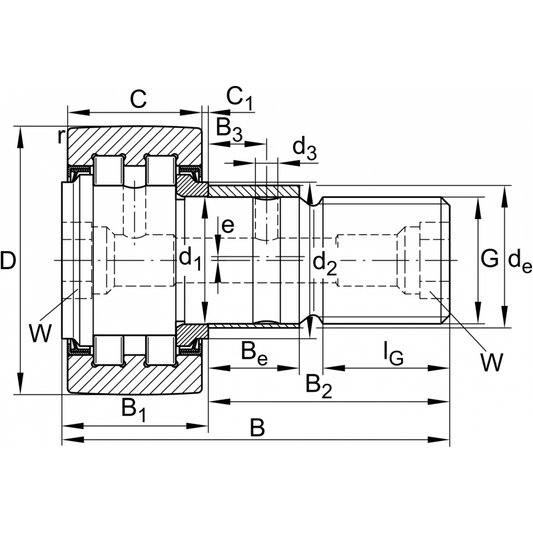

PWKRE40-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 24.60 mm Width, eccentric Be 14 mm Width of flats W 8 mm Thread M18X1,5 Minimum chamfer dimension rmin 1 mm Width, outer ring C 20 mm Eccentricity e 1 mm Diameter of eccentric de 22 mm Thread...

PWKR47-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 25.60 mm Thread length IG 21 mm Diameter lubrication hole ds 4 mm Minimum chamfer dimension rmin 1 mm Width, outer ring C 24 mm Bolt/stud length effectively B2 40.50 mm Width of flats W 10 mm Thread...

PWKR40-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 21.60 mm Thread length IG 19 mm Diameter lubrication hole ds 3 mm Minimum chamfer dimension rmin 1 mm Width, outer ring C 20 mm Bolt/stud length effectively B2 36.50 mm Width of flats W 8 mm Thread...

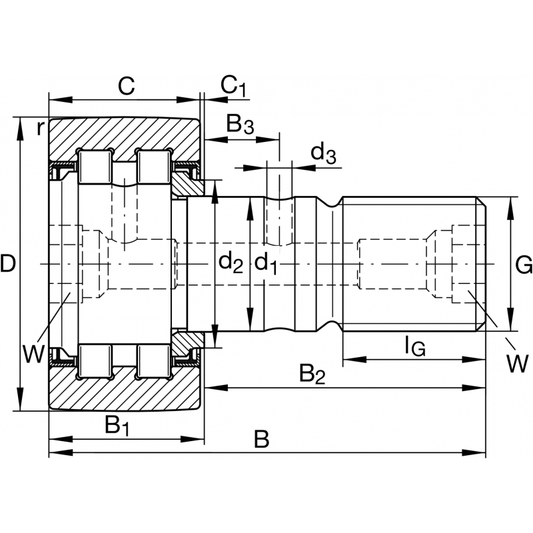

PWKR35-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 19.60 mm Thread length IG 17 mm Diameter lubrication hole ds 3 mm Minimum chamfer dimension rmin 0.60 mm Width, outer ring C 18 mm Bolt/stud length effectively B2 32.50 mm Width of flats W 8 mm Thread...

NUKRE72-NMT Stud type track rollers bearings

NUKRE62-NMT Stud type track rollers bearings

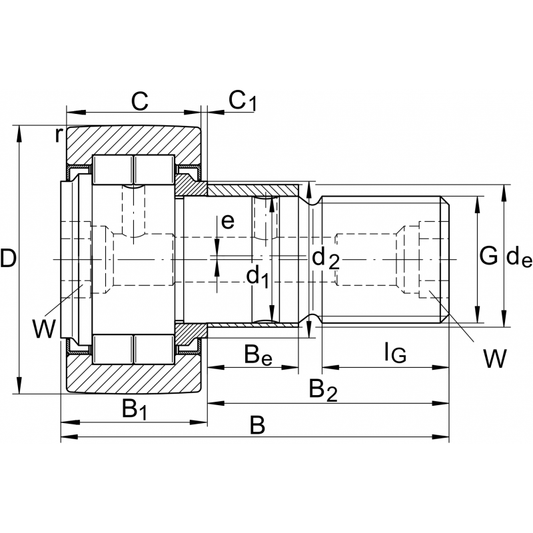

NUKRE52 Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 25.60 mm Width, eccentric Be 18 mm Width of flats W 10 mm Thread M20X1,5 Minimum chamfer dimension rmin 1 mm Width, outer ring C 24 mm Eccentricity e 1 mm Diameter of eccentric de 24 mm...
