Stud Type Track Rollers

NUKRE35-NMT Stud type track rollers bearings

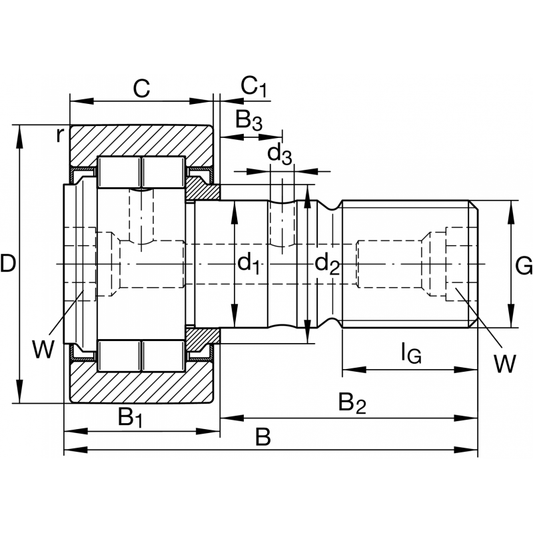

NUKR80 Stud type track rollers bearings Dimensions Witdh of thrust washer B1 37 mm Thread length IG 32 mm Diameter lubrication hole ds 4 mm Minimum chamfer dimension rmin 1.10 mm Width, outer ring C 35 mm Bolt/stud length effectively B2 63 mm Width of flats W 14 mm Thread...

PWKR72-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 30.60 mm Thread length IG 25 mm Diameter lubrication hole ds 4 mm Minimum chamfer dimension rmin 1.10 mm Width, outer ring C 28 mm Bolt/stud length effectively B2 49.50 mm Width of flats W 14 mm Thread...

PWKR62-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 30.60 mm Thread length IG 25 mm Diameter lubrication hole ds 4 mm Minimum chamfer dimension rmin 1 mm Width, outer ring C 28 mm Bolt/stud length effectively B2 49.50 mm Width of flats W 14 mm Thread...

NUKRE90-X Stud type track rollers bearings Manufacturer Part Number LI-BE CFE90CZZ

NUKRE90-NMT Stud type track rollers bearings

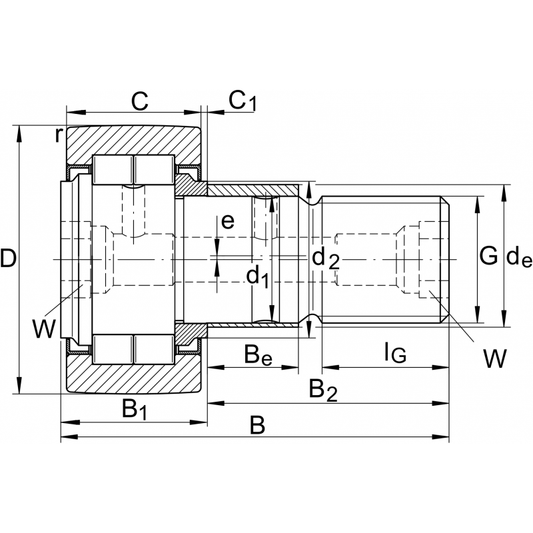

NUKRE90 Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 37 mm Width, eccentric Be 29 mm Width of flats W 14 mm Thread M30X1,5 Minimum chamfer dimension rmin 1.10 mm Width, outer ring C 35 mm Eccentricity e 1.50 mm Diameter of eccentric de 35 mm...

PWKRE90-2RS Stud type track rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 89,000 N Speed on permanent grease lubrication nD G 1,800 1/min Basic static load rating, radial C0r 89,000 N Width B 100 mm Outside diameter D 90 mm Permissible static load,...

NUKRE80-X Stud type track rollers bearings Manufacturer Part Number LI-BE CFE80CZZ SKF NUKRE80X

PWKRE72-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 30.60 mm Width, eccentric Be 22 mm Width of flats W 14 mm Thread M24X1,5 Minimum chamfer dimension rmin 1.10 mm Width, outer ring C 28 mm Eccentricity e 1 mm Diameter of eccentric de 28 mm Thread...

NUKRE80-NMT Stud type track rollers bearings

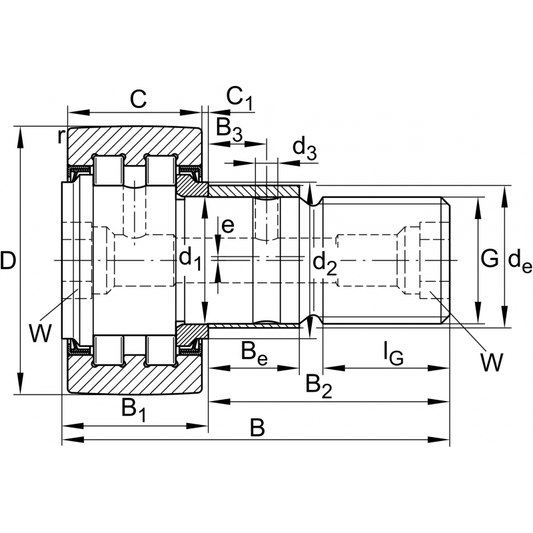

PWKRE47-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 25.60 mm Width, eccentric Be 18 mm Width of flats W 10 mm Thread M20X1,5 Minimum chamfer dimension rmin 1 mm Width, outer ring C 24 mm Eccentricity e 1 mm Diameter of eccentric de 24 mm Thread...
