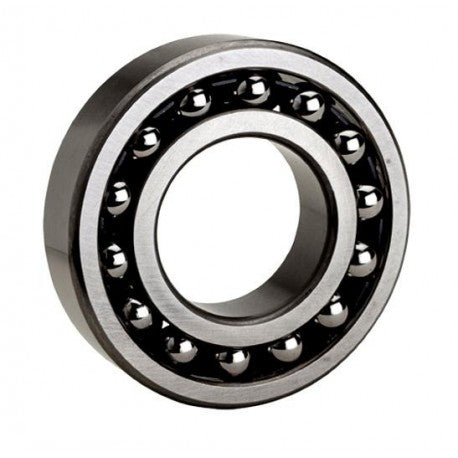

1222K NTN Self-Aligning Ball Bearings Features & Specifications:
precision rating : Class 0
maximum rpm : 3400 rpm
Bore Diameter : 110 mm
outside diameter : 200 mm
overall width : 38 mm
bearing material : High Carbon Chrome Steel
bore type : Tapered 1:12
cage material : Steel
closure type : Open
finish/coating : Uncoated
internal clearance : CN
outer ring width : 38 mm
operating temperature range : -40 to 120 ºC
fillet radius : 2.1 mm
dynamic load capacity : 87000 N
static load capacity : 38500 N
