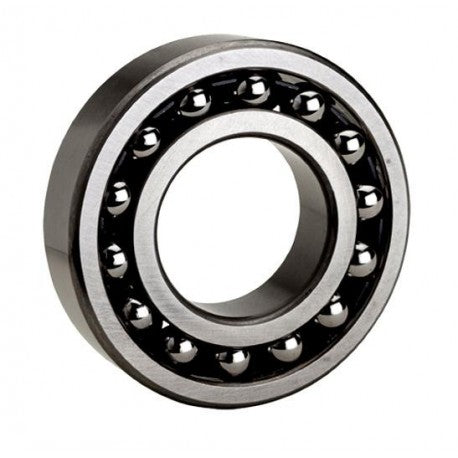

1316KC3 NTN Self-Aligning Ball Bearings Features & Specifications:
precision rating : Class 0
maximum rpm : 4300 rpm
Bore Diameter : 80 mm
outside diameter : 170 mm
overall width : 39 mm
bearing material : High Carbon Chrome Steel
bore type : Tapered 1:12
cage material : Steel
closure type : Open
finish/coating : Uncoated
internal clearance : C3
outer ring width : 39 mm
operating temperature range : -40 to 120 ºC
fillet radius : 2.1 mm
dynamic load capacity : 89000 N
Series : 13K
static load capacity : 33000 N
