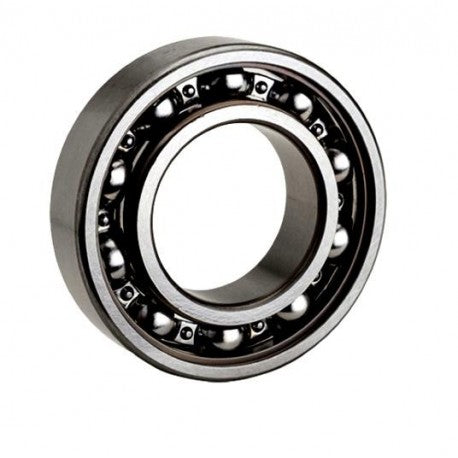

16013 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
finish/coating : Uncoated
outside diameter : 100 mm
Bore Diameter : 65 mm
bearing material : High Carbon Chrome Steel
overall width : 11 mm
cage material : Steel
bore type : Round
inner ring width : 11 mm
closure type : Open
outer ring width : 11 mm
row type & fill slot : Single Row Non-Fill Slot
maximum rpm (grease) : 6500 rpm
maximum rpm (oil) : 7700 rpm
snap ring included : Without Snap Ring
internal clearance : CN
fillet radius : 0.6 mm
operating temperature range : -40 to 120 ºC
maximum rpm : 7700 RPM
