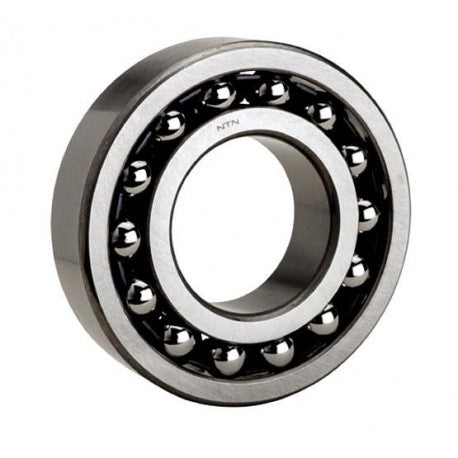

2310C3 NTN Self-Aligning Ball Bearings Features & Specifications:
precision rating : Class 0
maximum rpm : 6300 rpm
Bore Diameter : 50 mm
outside diameter : 110 mm
overall width : 40 mm
bearing material : High Carbon Chrome Steel
bore type : Straight
cage material : Steel
closure type : Open
finish/coating : Uncoated
internal clearance : C3
outer ring width : 40 mm
operating temperature range : -40 to 120 ºC
fillet radius : 2 mm
dynamic load capacity : 65000 N
static load capacity : 20200 N
