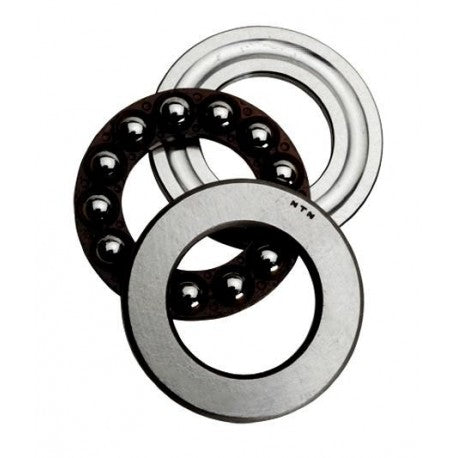

2916 NTN Ball Thrust Bearings bore Features & Specifications:
fillet radius : 0.6 mm
separable or banded : Separable
Series : 29
precision rating : ISO Class 0
static load capacity : 171200 N
Bore Diameter : 80 mm
dynamic load capacity : 57400 N
outside diameter : 110 mm
operating temperature range : -40 to 120 ºC
overall width : 22 mm
bearing material : High Carbon Chrome Steel
thrust bearing type : Single-Direction
cage material : Steel
outside diameter design : Straight
