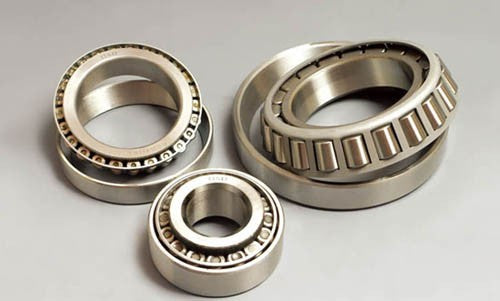

30203A 30203-A Tapered Roller Bearings
The price is FOB CHINA, Brand(Manufacturer): FIJ
Payment Terms: T/T or paypal or western union.
Package: Standard or According to your requirements.
Bearing shop online - Best Bearings Supplier In China
Not all bearings are equal, and not all bearings can work freely. But with the right bearings, you can make your machine worry-free working. Being one of the best Bearings suppliers in China, we can offer you the right bearings based on your needs.
if you need support on selection of bearings,contact us at [email protected]
| Attributes | Values |
| Units | mm |
| Bearing Type | single row assembly |
| Bore Dia (d) | 17.0000 |
| Outer Dia (D) | 40.0000 |
| Width (B) | 13.2500 |
| Outer Width (Bo) | 11.0000 |
| Inner Width (Bi) | 12.0000 |
| Radius (min) (rs) | 1.000 |
| Dynamic Load Rating (Cr) | 20,700 |
| Static Load Rating (Cor) | 22,200 |
| Max Speed (Grease) | 9,000 |
| Max Speed (Oil) | 13,000 |
| Max. Shaft Shoulder Dia. Inner (Li) | 23.0 |
| Min. Housing Shoulder Dia., Outer (Lo) | 34.0 |
| Radius (min) (rs1) | 1.000 |
| Weight (g) | 82.00 |
| Material | 52100 chrome steel or equiavelent |
Tapered roller bearing 30203-A
1.low noise
2.high quality
3.favorable price
4.good service
5.OEM accepted
6.prompt delivery
7.free samples
Description
1. Products Can be customized according to your needs.
2. Application: Machine Tools, Auto, Motor, Engineering machinery, Transmission converyor lines and so on.
3. tapered roller bearing 30203
4. Payment: T/T,paypal
Metric Tapered Bearing is one of the most popular tapered bearing types and is found in a wide range of applications.It's designed to handle heavy radial loads and single direction thrust loads.It comprises of two parts, the cup - which is the outer ring of the bearing,and the cone- which consists of the inner race, rollers and cage.
Common Applications:
Trailers
Agricultural equipment
Gearboxes
Transmissions
Automotive applications
Caravan wheel bearings
Please note that these bearings are measured in millimeters (mm).
