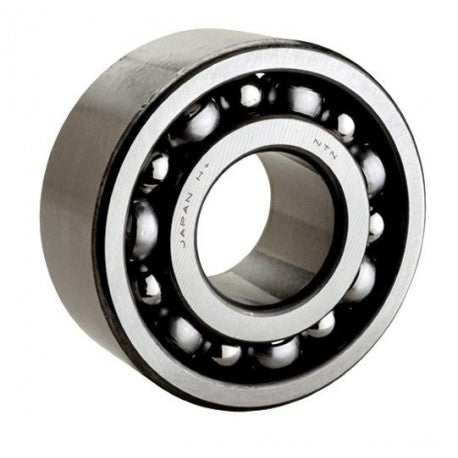

3202 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 10100 N
outside diameter : 35 mm
Bore Diameter : 15 mm
operating temperature range : -40 to 120 ºC
overall width : 0.6250 in
cage material : Steel
contact angle : 32 °
outer ring width : 15.88 mm
row type & fill slot : Double-Row Non-Fill Slot
maximum rpm : 15000 RPM
internal clearance : C0
finish/coating : Uncoated
precision rating : Class 0
bore type : Round
closure type : Open
fillet radius : 0.6 mm
snap ring included : Without Snap Ring
Series : 32
