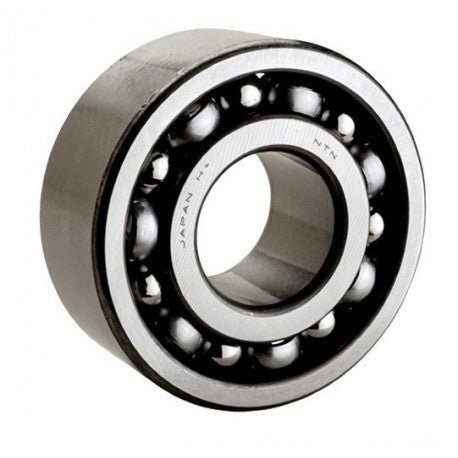

3205 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
radial dynamic load capacity : 23100 N
outside diameter : 52 mm
Bore Diameter : 25 mm
Radial static load capacity : 21800 N
overall width : 0.8125 in
operating temperature range : -40 to 120 ºC
contact angle : 32 °
cage material : Steel
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
fillet radius : 1 mm
closure type : Open
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
