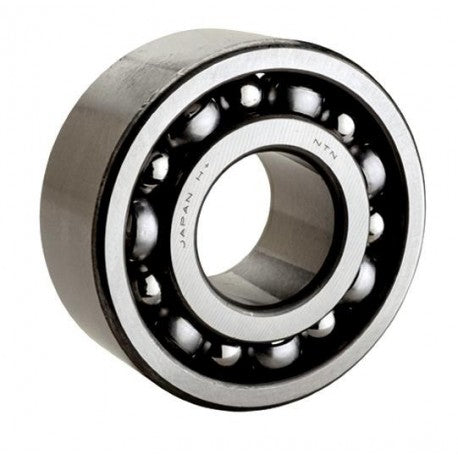

3208C3 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
maximum rpm : 6600 RPM
internal clearance : C3
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
closure type : Open
fillet radius : 1.1 mm
Bore Diameter : 40 mm
Radial static load capacity : 50500 N
outside diameter : 80 mm
operating temperature range : -40 to 120 ºC
overall width : 1.1875 in
cage material : Steel
contact angle : 32 °
outer ring width : 30.16 mm
row type & fill slot : Double-Row Non-Fill Slot
snap ring included : Without Snap Ring
Series : 32
