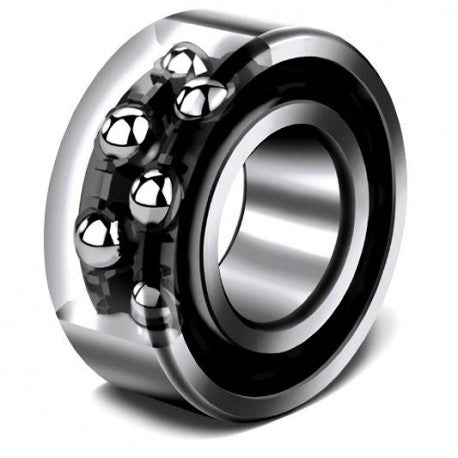

3209JC3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
radial dynamic load capacity : 44000 N
outside diameter : 85 mm
Bore Diameter : 45 mm
maximum temperature : 120 °C
overall width : 1.1875 in
cage material : Steel Cage
contact angle : 32 °
maximum rpm : 6700 rpm
row type & fill slot : Double-Row Filling Slot
finish/coating : Uncoated
internal clearance : C3
precision rating : ABEC1, P0
fillet radius : 1.1 mm
bore type : Round
closure type : Open
Series : 3200
snap ring included : Without Snap Ring
