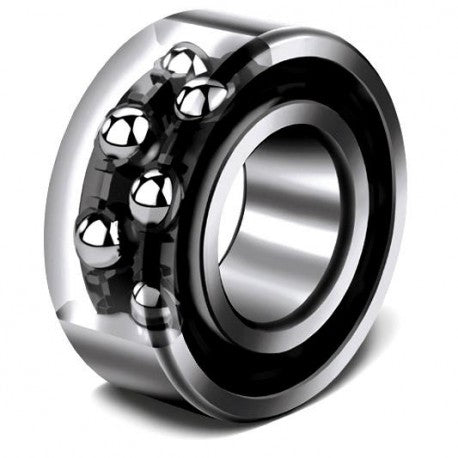

3306JC3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
radial dynamic load capacity : 37400 N
outside diameter : 72 mm
Bore Diameter : 30 mm
maximum temperature : 120 °C
overall width : 1.1875 in
cage material : Steel Cage
contact angle : 32 °
maximum rpm : 8500 rpm
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C3
precision rating : ABEC1, P0
fillet radius : 1.1 mm
bore type : Round
closure type : Open
Series : 3300
snap ring included : Without Snap Ring
