35TAC72CSUHPN7C ball screw support bearings brand:FIJ
35TAC72CSUHPN7C replaces 35TAC72BSUC10PN7B and 35TAC72BSUC10PN7A.
is a high quality commonly used ball screw support bearing.
This H Version in part number designates High Precision and the C is P2 class.
|
Example Bearing set part number using 35TAC72BSUC10 or 35TAC72BSUC10 Order the correct QTY based on your configuration below. Sold as Single Bearings |
||
| Duplex 2 Bearing Set | Triplex 3 Bearing Set | Quad 4 Bearing Set |
|
35TAC72A** |
35TAC72DBD |
35TAC72DBB |
| 35TAC72CSUHPN7C |

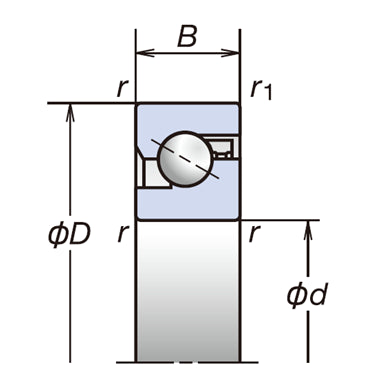

| d | 35 | mm | Bore diameter |
| D | 72 | mm | Outside diameter |
| B | 15 | mm | Width |
| r(min.) | 1 | mm | Chamfer Dimension |
| r1(min.) | 0.6 | mm | Chamfer Dimension |
| Ca(1row) | 39.0 | kN | Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa |
| Ca(2row) | 63.5 | kN | Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa |
| Ca(3row) | 84.5 | kN | Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa |
| Grease | 4100 | min-1 | Limiting Speed (H-Preload) |
| Oil (Oil-air) | 5800 | min-1 | Limiting Speed (H-Preload) |
| 60° | Contact Angle | ||
| db(min.) | 42 | mm | Diameter of Shaft Abutment |
| da(min.) | 42 | mm | Diameter of Shaft Abutment |
| Da(max.) | 66 | mm | Diameter of Housing Abutment |
| Db(max.) | 67 | mm | Diameter of Housing Abutment |
| 1row | 50.0 | kN | Limiting Static Axial Load by Number of Rows Sustaining Fa |
| 2row | 100 | kN | Limiting Static Axial Load by Number of Rows Sustaining Fa |
| 3row | 150 | kN | Limiting Static Axial Load by Number of Rows Sustaining Fa |
| Preload | Axial Rigidity | |
| H | 2750N | 1030N/μm |
| H | -15 | μm | Measured Axial Clearance(DB and DF arrangement) |
| H | 0.18 | N・m | Starting Torque(DB and DF arrangement) |
| 3.5 | g/brg | Recommended Grease Quantities |
| 0.310 | kg | Mass(approx.) |
