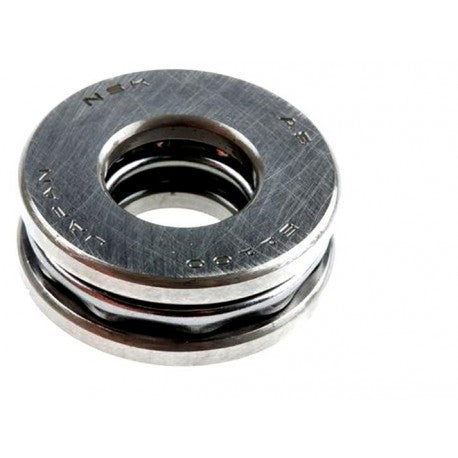

51180M NSK Ball Thrust Bearings bore Features & Specifications:
Bore Diameter : 400 mm
static load capacity : 450000 lbf
outside diameter : 480 mm
dynamic load capacity : 88500 lbf
overall width : 65 mm
thrust bearing type : Single-Direction
operating temperature range : Maximum of +120 °C
maximum rpm : 800 rpm
outside diameter design : Straight
cage material : Machined Brass Cage
fillet radius : 2 mm
separable or banded : Separable
race type : Flat
Series : 51100
precision rating : ABEC1, P0
