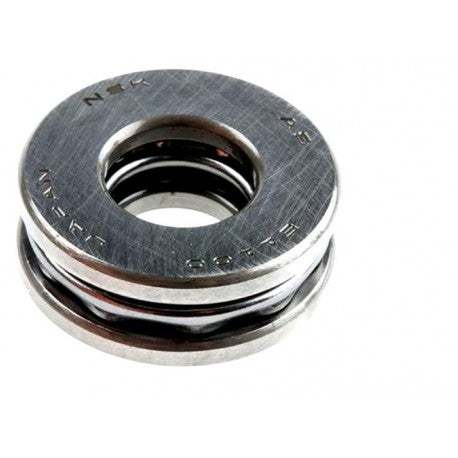

51320 NSK Ball Thrust Bearings bore Features & Specifications:
cage material : Steel Cage
separable or banded : Separable
fillet radius : 1.5 mm
race type : Flat
Series : 51300
precision rating : ABEC1, P0
Bore Diameter : 100 mm
static load capacity : 134000 lbf
outside diameter : 170 mm
dynamic load capacity : 53500 lbf
overall width : 55 mm
operating temperature range : Maximum of +120 °C
thrust bearing type : Single-Direction
maximum rpm : 1500 rpm
outside diameter design : Straight
