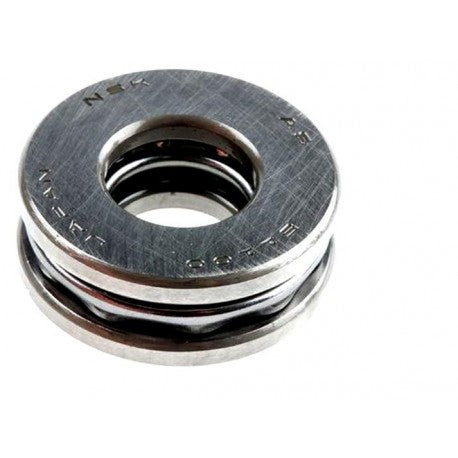

51406 NSK Ball Thrust Bearings bore Features & Specifications:
Bore Diameter : 30 mm
static load capacity : 28300 lbf
outside diameter : 70 mm
dynamic load capacity : 16500 lbf
overall width : 28 mm
thrust bearing type : Single-Direction
operating temperature range : Maximum of +120 °C
maximum rpm : 3400 rpm
outside diameter design : Straight
cage material : Steel Cage
fillet radius : 1 mm
separable or banded : Separable
race type : Flat
Series : 51400
precision rating : ABEC1, P0
