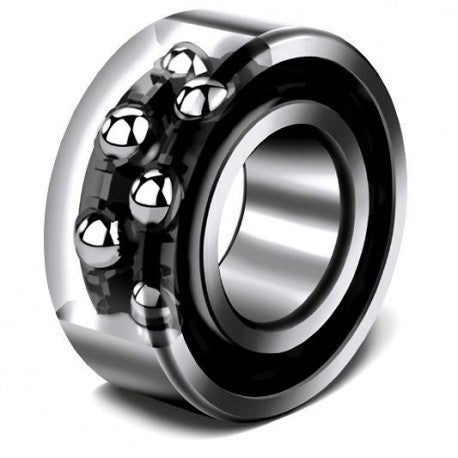

5200 TNG C3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
radial dynamic load capacity : 8130 N
outside diameter : 30 mm
Bore Diameter : 10 mm
maximum temperature : 120 °C
overall width : 0.5625 in
cage material : Polyamide Cage
contact angle : 25 °
maximum rpm : 22000 rpm
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C3
precision rating : ABEC1, P0
fillet radius : .6 mm
bore type : Round
closure type : Open
Series : 5200
snap ring included : Without Snap Ring
