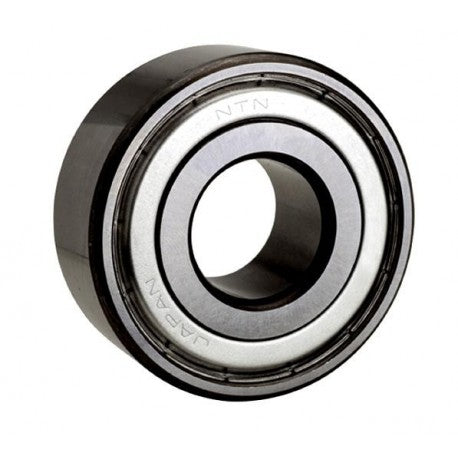

5200CZZ NTN Double Row Angular Contact Ball Bearings Features & Specifications:
radial dynamic load capacity : 7150 N
Radial static load capacity : 3900 N
Bore Diameter : 10 mm
outside diameter : 30 mm
overall width : 0.5625 in
operating temperature range : -40 to 120 ºC
contact angle : 25 °
cage material : Steel
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
closure type : Double Shield
fillet radius : 0.6 mm
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
