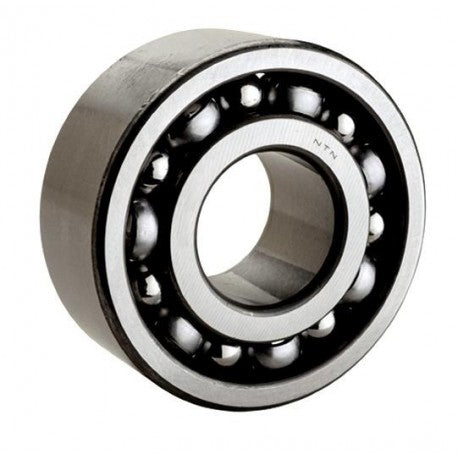

5201C3 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Bore Diameter : 12 mm
Radial static load capacity : 5050 N
outside diameter : 32 mm
operating temperature range : -40 to 120 ºC
overall width : 0.6250 in
contact angle : 30 °
cage material : Steel
maximum rpm : 17000 rpm
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
precision rating : Class 0
bore type : Round
closure type : Open
fillet radius : 0.6 mm
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
