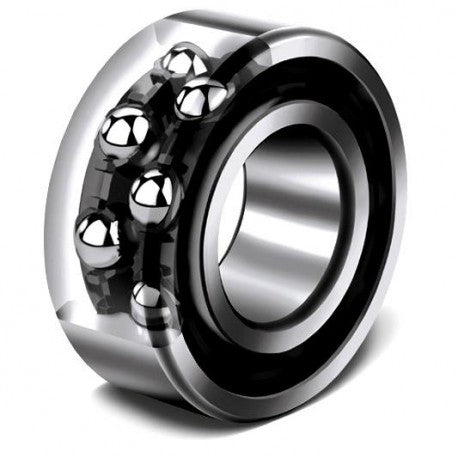

5203 J C3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
radial dynamic load capacity : 14600 N
maximum temperature : 120 °C
Bore Diameter : 17 mm
outside diameter : 40 mm
overall width : 0.6875 in
cage material : Steel Cage
contact angle : 25 °
maximum rpm : 15000 rpm
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C3
precision rating : ABEC1, P0
bore type : Round
fillet radius : .6 mm
closure type : Open
Series : 5200
snap ring included : Without Snap Ring
